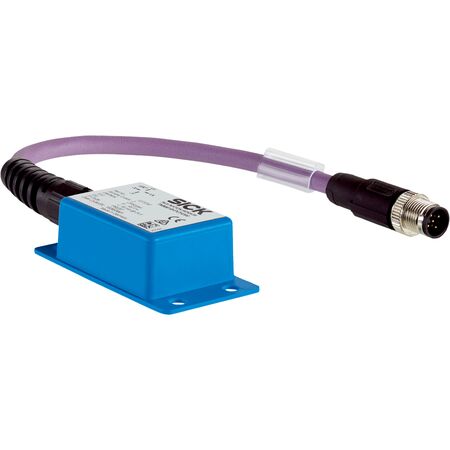

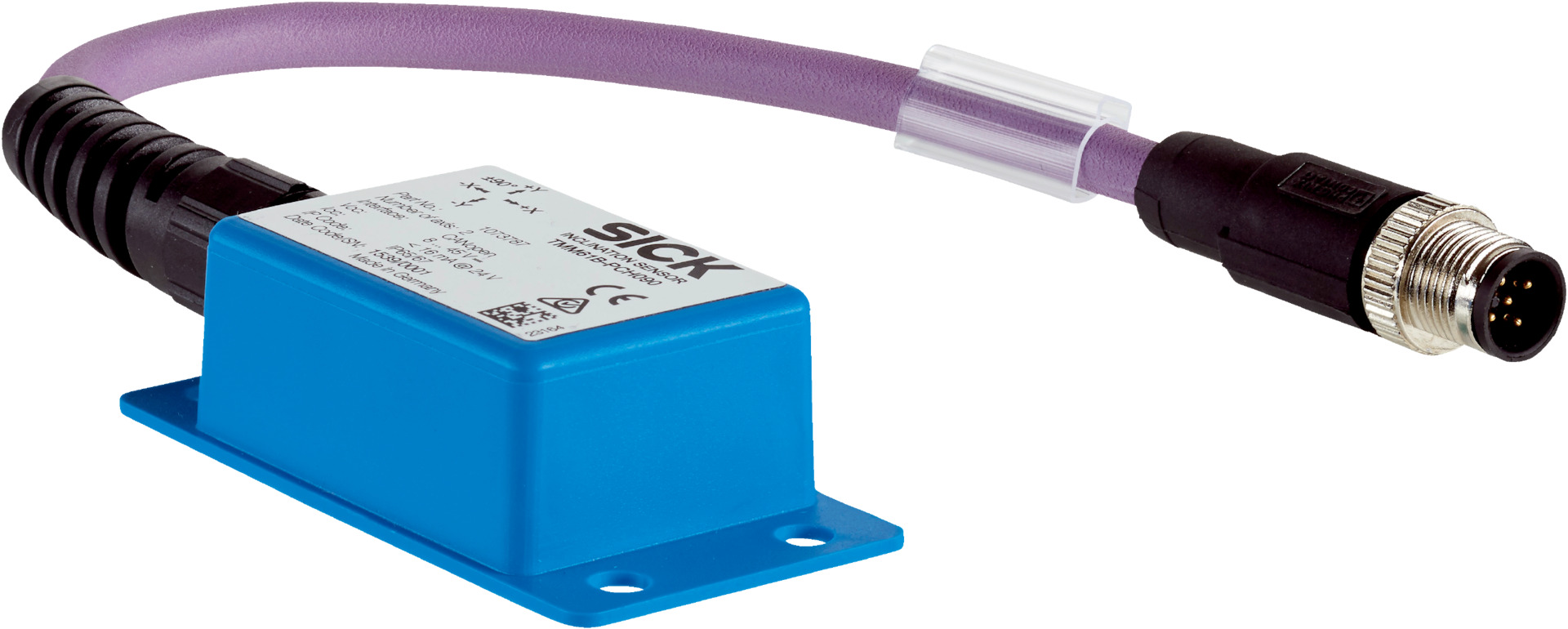

Inclination Sensor TMM61B-PCH090 | ±90° Measuring Range | IP65 & IP67 Rated | by SICK
The TMM61B-PCH090 Inclination Sensor offers a ±90° measuring range with high accuracy static measurement of typical ±0.1° up to ±60°. Designed for industrial automation and safety monitoring, this robust sensor features a durable ABS housing and operates in extreme temperatures from –40 °C to +80 °C, making it ideal for various applications including robotics and construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: ±90°
- Resolution: 0.01°
- Static measurement accuracy: ≤ ±60°, typical ±0.1°, max ±0.2°; ≤ ±80°, typical ±0.2°, max ±0.3°
- Compensated cross-sensitivity (2D): typical ±0.09°, max ±0.45°
- Temperature coefficient (zero point): typical ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
- Sampling rate: 80 Hz
- Communication interface: CANopen with CiA DS-301, DS-410 v4.2.0, DSP-305 protocols
- Address setting: 0 to 127, default 10
- Data transmission rate: 10 kbit/s to 1,000 kbit/s with automatic baud rate detection
- Connection type: 5-wire cable with M12 5-pin male connector, 0.2 m length
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: <16 mA at 24 V
- Reverse polarity and short-circuit protection included
- Housing material: Plastic (ABS)
- Cable material: PUR
- Enclosure rating: IP65 and IP67
- Operating temperature: –40 °C to +80 °C
- Storage temperature: –40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 20.7mm x 36.3mm x 68mm
- Weight: 0.1 kg
Key Features
- High accuracy static measurement with typical ±0.1° up to ±60°
- Measuring range of ±90° across 2 axes
- Robust plastic (ABS) housing with IP65 and IP67 enclosure rating
- CANopen communication interface with configurable parameters
- Operating temperature range from –40 °C to +80 °C
- Resistance to shocks up to 100 g and vibration up to 10 g
Professional Installation Requirements
- Installation by qualified personnel with knowledge of CANopen systems and electrical safety is recommended.
Applications
- Industrial automation for precise angle measurement
- Safety-related monitoring in machinery
- Robotics and motion control systems
- Inclination measurement in construction and engineering
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low current consumption (<16 mA) reduces energy usage
- Durable housing and high resistance to environmental factors extend product lifespan
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK TMM61B-PCH090 Inclination Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
