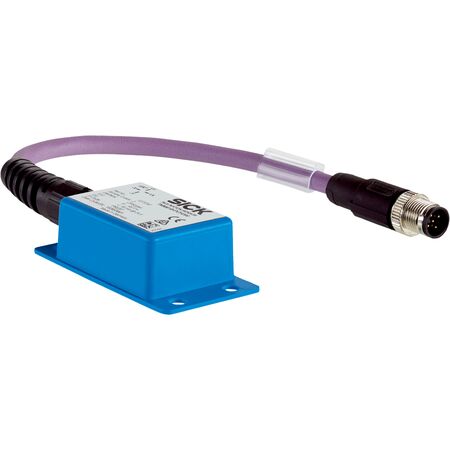

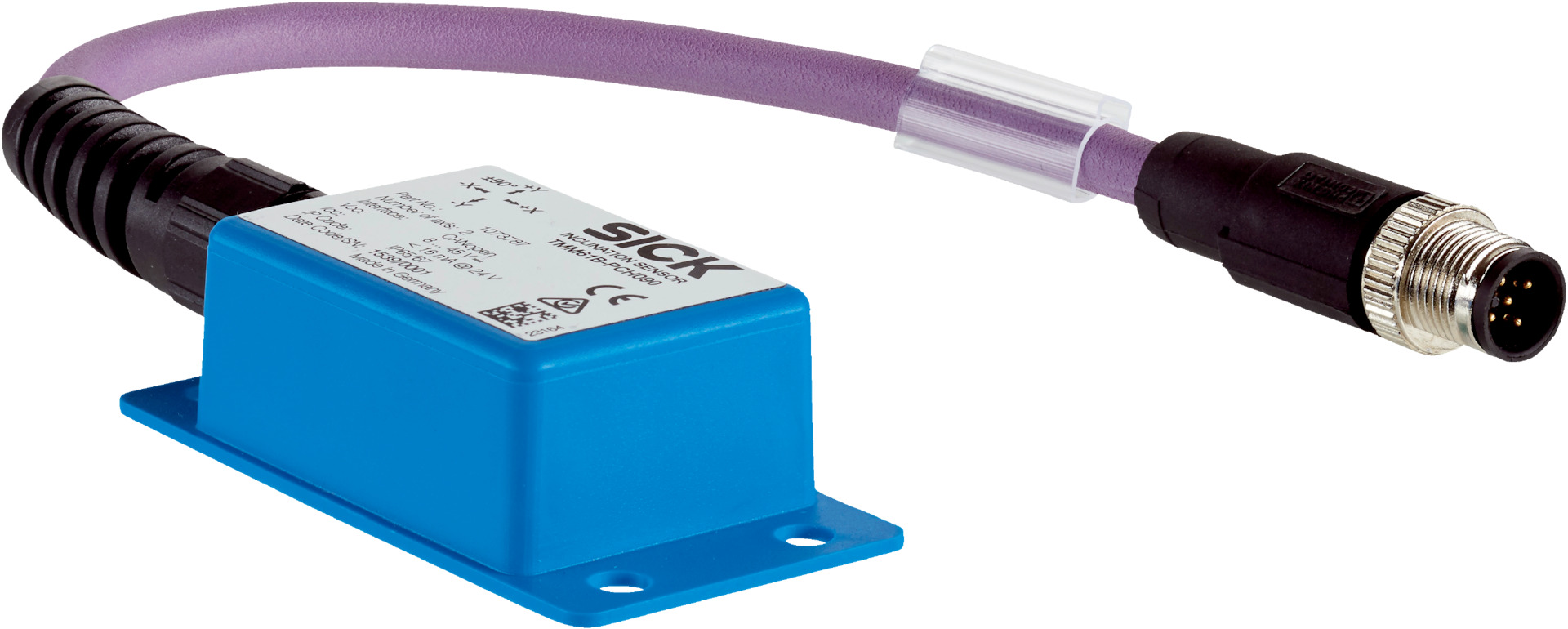

Inclination Sensor TMS61B-PCH360 | 360° Measuring Range | ±0.15° Accuracy | IP65 & IP67 Rated | by SICK
The TMS61B-PCH360 Inclination Sensor offers a 360° measuring range with a remarkable 0.01° resolution, making it perfect for industrial automation and robotics. With a high static measurement accuracy of typically ±0.15° and robust IP65/IP67 protection, this sensor ensures reliable angle detection in demanding environments, ideal for safety-related systems and precise angle measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 663 years (EN ISO 13849-1)
- Number of axis: 1
- Measuring range: 360°
- Resolution: 0.01°
- Static measurement accuracy: typically ±0.15°, max ±0.25°
- Temperature coefficient (zero point): typically ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
- Sampling rate: 80 Hz
- Communication interface: CANopen
- Device profile: CiA DS-301, CiA DS-410 v4.2.0, CiA DSP-305
- Address setting: 0 to 127, default 10
- Data transmission rate: 10 kbit/s to 1,000 kbit/s with automatic baud rate detection
- Status indication via CANopen status LED
- Connection type: 5-wire cable with M12 5-pin male connector, 0.2 m length
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: <16 mA at 24 V
- Reverse polarity and short-circuit protection included
- Housing material: Plastic (ABS)
- Cable material: PUR
- EMC compliance: EN 61326-1, EN ISO 14982, EN ISO 13309
- Enclosure rating: IP65 and IP67
- Operating temperature range: –40 °C to +80 °C
- Storage temperature range: –40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 20.7mm x 36.3mm x 68mm
- Weight: 0.1 kg
Key Features
- 360° measuring range with 0.01° resolution
- High static measurement accuracy: typically ±0.15°, max ±0.25°
- Robust housing with IP65 and IP67 protection ratings
- CANopen communication interface with configurable parameters
- Operating temperature range from –40 °C to +80 °C
- Short-circuit and reverse polarity protection
Professional Installation Requirements
- Installation by qualified personnel with experience in CANopen devices and industrial sensors is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise angle measurement
- Robotics and machinery requiring inclination monitoring
- Safety-related systems needing reliable angle detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low current consumption (<16 mA) contributes to energy efficiency
Warranty Information
Warranty terms as provided by SICK, typically 1-3 years depending on region and application.
Available Now
The SICK TMS61B-PCH360 Inclination Sensor is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise angle measurement.
