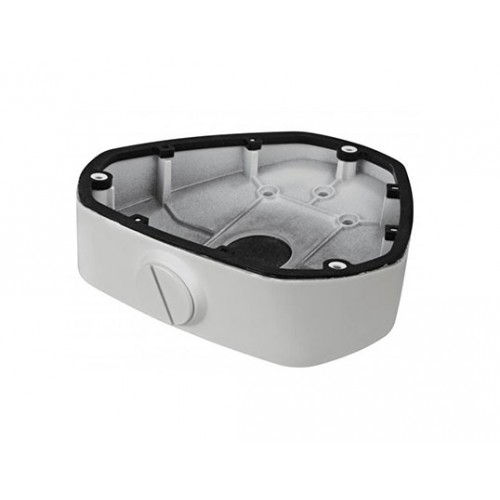

Inclined Ceiling Mount Bracket DS-1281ZJ-DM25 Hikvision
Hikvision inclined ceiling mount bracket features an angled ceiling fixing. Ideal for CCTV installs needing an angled camera position from the ceiling.
Sign in
Please login to continue to your account.
Alternatively Known As: DS-1281ZJ-DM25, Hikvision Dome Camera Ceiling Bracket, Angled CCTV Ceiling Mount
- Model: DS-1281ZJ-DM25
- Bracket Type: Inclined ceiling mount for dome cameras
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Maximum Load Capacity: 4.5 kg
- Cable Management: Integrated cable hole
- Installation Surface: Flat ceiling or wall surface
- Dimensions: 157.1 × 164 × 45.5 mm
- Weight: 300 g
- Dimensions (H x L x W): 45.5mm x 157.1mm x 164mm
- Weight: 0.3 kg
- Provides an angled mounting position for compatible Hikvision dome cameras
- Aluminium alloy construction with white surface treatment
- Integrated cable hole assists cable routing
- Suitable for CCTV installations requiring an inclined ceiling mount
- Wall or ceiling substrate should support at least three times the combined camera and bracket weight
- Waterproof sealing is required for outdoor applications
- Mounting compatible Hikvision dome cameras to inclined ceilings
- CCTV installations requiring an angled camera viewpoint
- Indoor security camera installations
- Outdoor CCTV installations when suitable waterproof sealing is used
- No product-specific Australian/New Zealand conformity claim was identified for the passive mounting bracket. CCTV system selection, planning and installation may be considered with reference to AS/NZS 62676.4:2020; this standard does not certify the bracket itself. ([kpt-bj.com](https://kpt-bj.com/as-nzs-62676-4-2020-video-surveillance-systems-for-use-in-security-applications-part-4-application-guidelines-iec-62676-4-2014-mod-1594713419.html?utm_source=openai))
- Aluminium alloy is durable and widely recyclable at end of service life
- Long service life can reduce replacement frequency and associated material waste
- Passive construction requires no electrical power during operation
No product-specific Hikvision Australia warranty term was located for this mounting bracket. Warranty coverage should be confirmed with the authorised Australian distributor; Hikvision Australia states that warranty support is tied to products supplied through authorised distribution partners. Some reseller listings specify a two-year term for this accessory, but this is not treated as a manufacturer warranty claim. ([pro-av.hikvision.com](https://pro-av.hikvision.com/au-en/newsroom/latest-news/2022/hikvision-ebay-online-market-statement/?utm_source=openai))
Available through Hikvision and authorised Australian security and CCTV distributors; confirm current local stock with the distributor.
