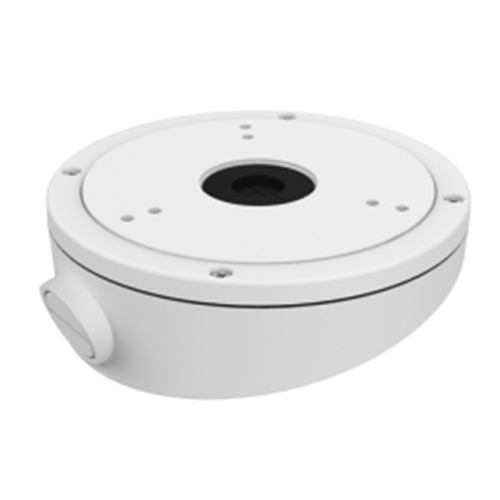

Inclined Ceiling Mounting Bracket DS-1281ZJ-M Hikvision
Hikvision inclined ceiling mounting bracket features an angled ceiling fixing. Ideal for CCTV installs needing an angled camera position from the ceiling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1281ZJ-M, Angled Ceiling Camera Mount, Inclined Ceiling Mount Bracket, CCTV Dome Camera Mount
Technical Specifications
- Model: DS-1281ZJ-M
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Maximum Load Capacity: 4.5 kg
- Cable Routing: Side and bottom outlets
- Installation Environment: Indoor and outdoor use
- Outdoor Requirement: Waterproof rubber required for outdoor applications
- Mounting Surface: Suitable for installation on a flat supporting surface
- Structural Requirement: Supporting surface should support more than three times the combined camera and bracket weight
- Dimensions (H x L x W): 60mm x 165.5mm x 157mm
- Weight: 0.586 kg
Key Features
- Provides an angled mounting position for compatible dome and turret cameras
- Aluminium alloy construction for a durable, lightweight mounting solution
- Surface spray treatment for improved finish and protection
- Side and bottom cable outlets support neater cable routing
- Suitable for indoor and outdoor applications when correctly weather-sealed
- Designed for compatible Hikvision camera mounting patterns
Applications
- Angled ceiling mounting of compatible Hikvision dome cameras
- CCTV installations requiring camera position adjustment from an inclined ceiling
- Indoor commercial, retail and office surveillance installations
- Outdoor surveillance installations with suitable waterproof sealing
Environmental Benefits
- Aluminium alloy is highly recyclable at the end of the product's service life
- Durable construction can reduce replacement frequency and associated material waste
- Lightweight metal construction reduces material use compared with heavier mounting alternatives
Warranty Information
Hikvision warranty support is subject to the applicable product warranty terms, purchase documentation and authorised distribution conditions. Confirm the warranty period with the Australian distributor for this accessory.
Available Now
Available through Hikvision and authorised Australian CCTV and security equipment distributors.
