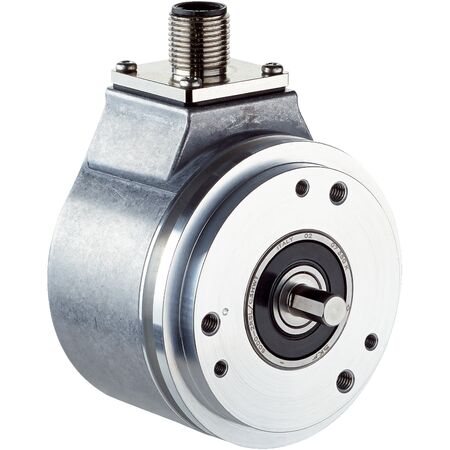

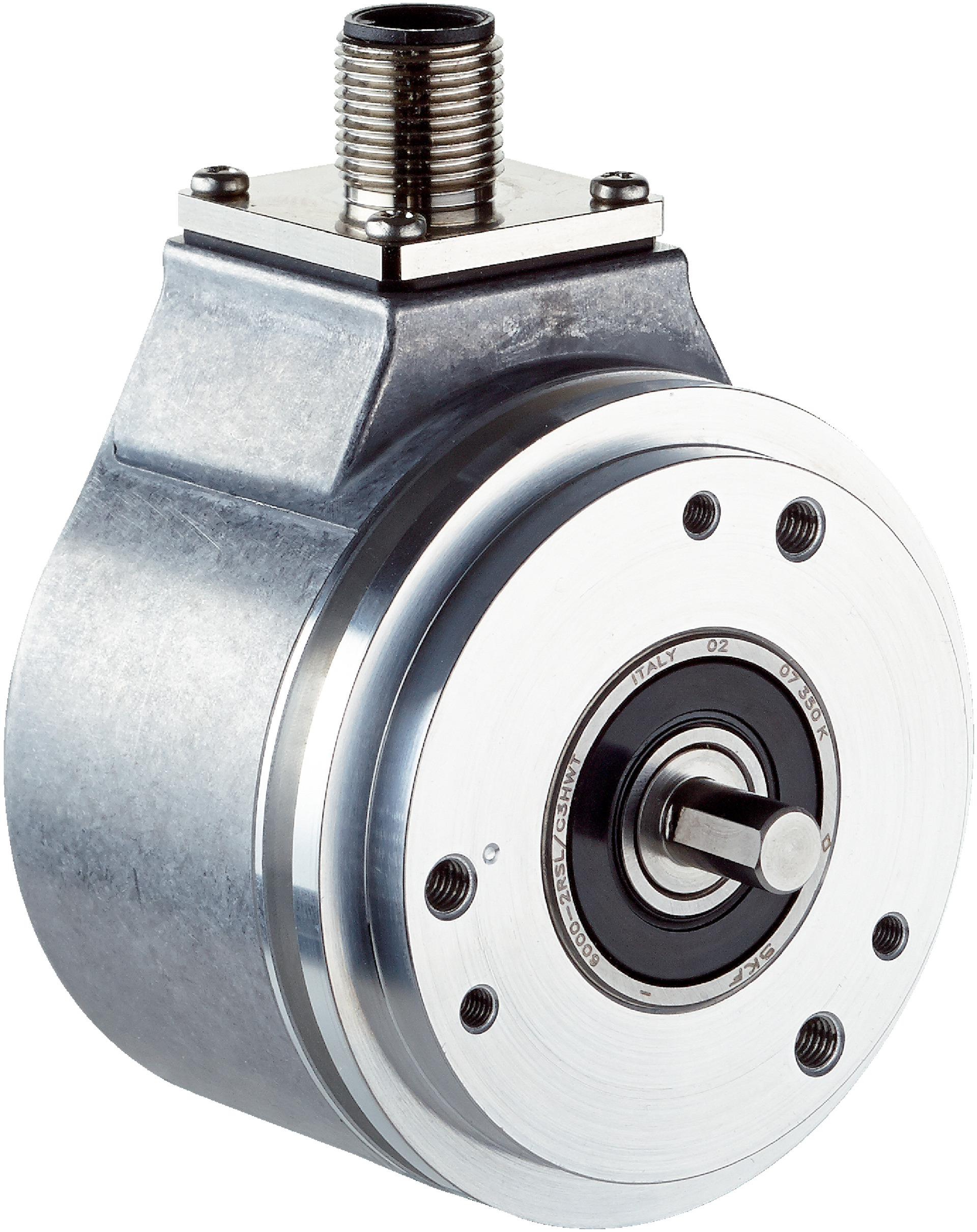

Incremental Encoder DBS60B-S1HC10000 | 10,000 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Encoder DBS60B-S1HC10000 delivers high precision with 10,000 pulses per revolution, making it ideal for industrial automation and robotics. Designed for durability, it features a solid stainless steel shaft and robust aluminum housing, ensuring reliable performance in demanding environments. With an operating temperature range of -20°C to +85°C and fast initialization under 5 ms, this encoder is perfect for precise position and speed measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60B-S1HC10000 | 10,000 Pulses/Rev | IP67 & IP65 Rated | by SICK
Brand: SICK
SKU: 1093663
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, position encoder, rotary pulse encoder
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 36° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Start-up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹ typical, max 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Solid shaft with stainless steel material and servo flange design
- Robust aluminum housing and flange for durability
- IP67 rated housing side and IP65 shaft side for protection against dust and water
- Short-circuit and reverse polarity protection
- Operating temperature range from -20°C to +85°C
- High operating speed up to 9,000 min⁻¹
- Low start-up torque of 1.2 Ncm
- 6-channel incremental TTL/RS-422 output interface
- Fast initialization time under 5 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60B-S1HC10000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
