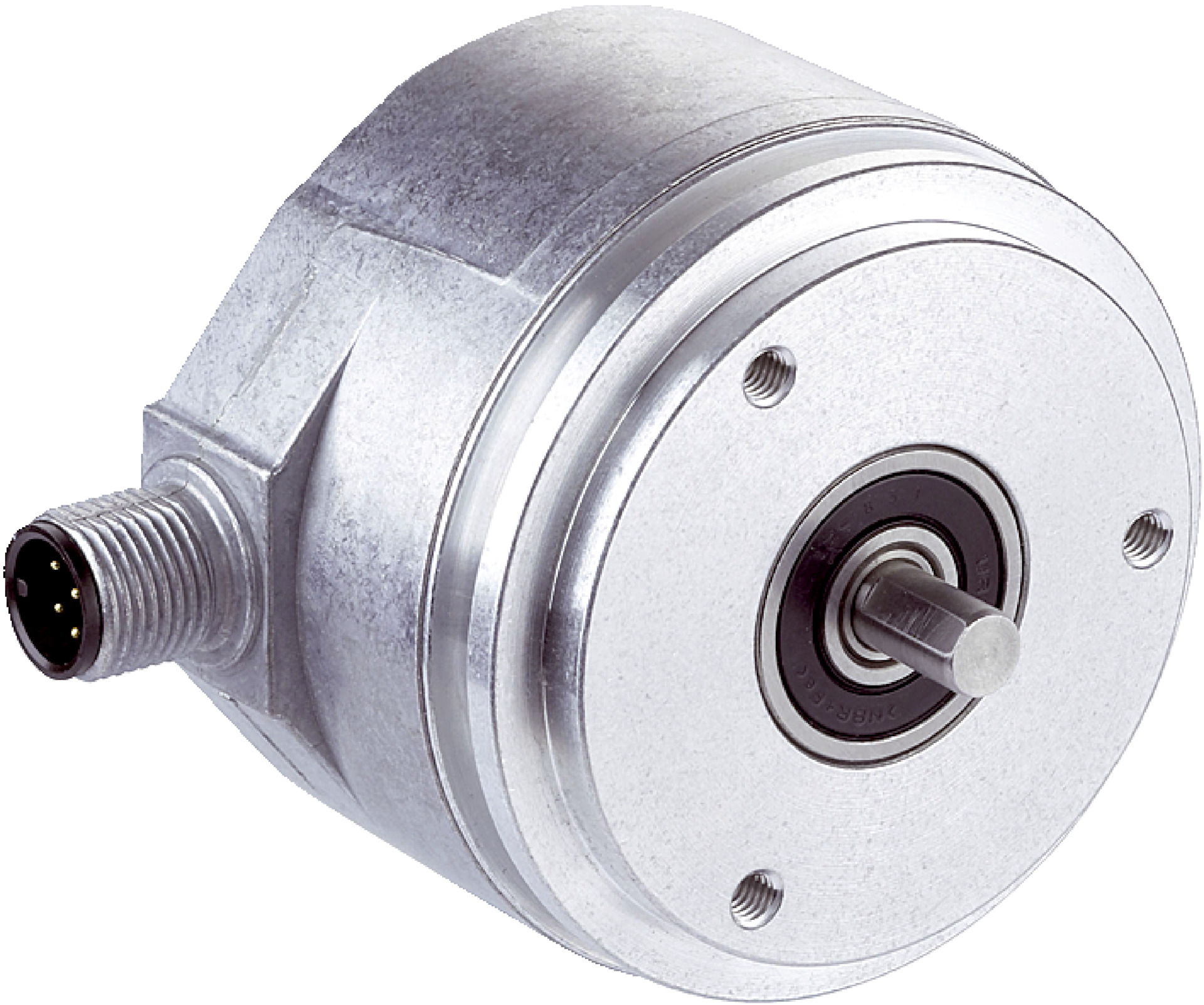

Incremental Encoder DFS60B-S1EC01000 | 1000 Pulses/Rev | IP67 Rated | High Accuracy | by SICK
The Incremental Encoder DFS60B-S1EC01000 offers 1,000 pulses per revolution and a robust 6-channel HTL communication interface, making it ideal for industrial automation and robotics applications. With high accuracy featuring ±0.05° error limits and a wide operating temperature range from –40 °C to +100 °C, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S1EC01000 | 1000 Pulses/Rev | IP67 Rated | High Accuracy | by SICK
Brand: SICK
SKU: 1119845
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 1,000 pulses per revolution
- 6-channel HTL / Push pull communication interface
- High accuracy with ±0.05° error limits and ±0.01° measuring step deviation
- Robust mechanical design with solid shaft and servo flange
- IP67 rated housing for protection against dust and water
- Wide operating temperature range from –40 °C to +100 °C
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S1EC01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
