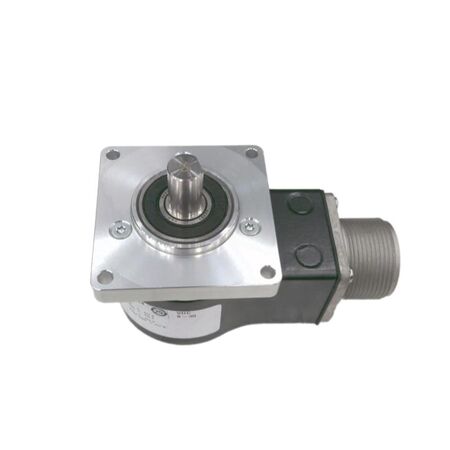

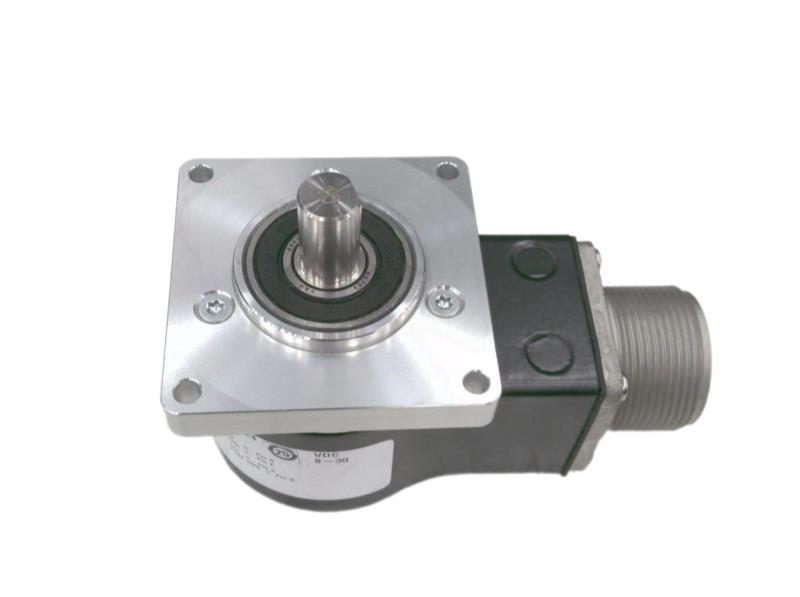

Product Name/Title: Allen-Bradley 847TDL2CRG01024 Incremental Encoder 1024 PPR
Brand: Allen-Bradley
SKU: 847TDL2CRG01024
Alternatively Known As: Incremental rotary encoder, 1024 PPR encoder, Allen-Bradley rotary encoder, HTL encoder, 10 mm shaft encoder
Technical Specifications
- Pulse Output: 1024 pulses per revolution
- Mounting: Standard square flange
- Shaft Diameter: 10 mm
- Voltage Supply: 8-30 V line driver
- Output Type: HTL (High Threshold Logic)
- Connector: MS connector, 10-pin with mating connector
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- Standard square flange mounting
- 10 mm diameter shaft
- 8-30 V line driver voltage range
- HTL (High Threshold Logic) output
- MS connector with 10-pin mating connector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems
- Machine tool feedback
- Position and speed sensing
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient machine operation by providing accurate feedback to reduce energy waste
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847TDL2CRG01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
