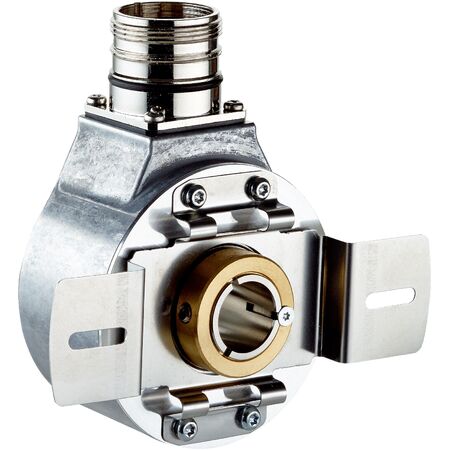

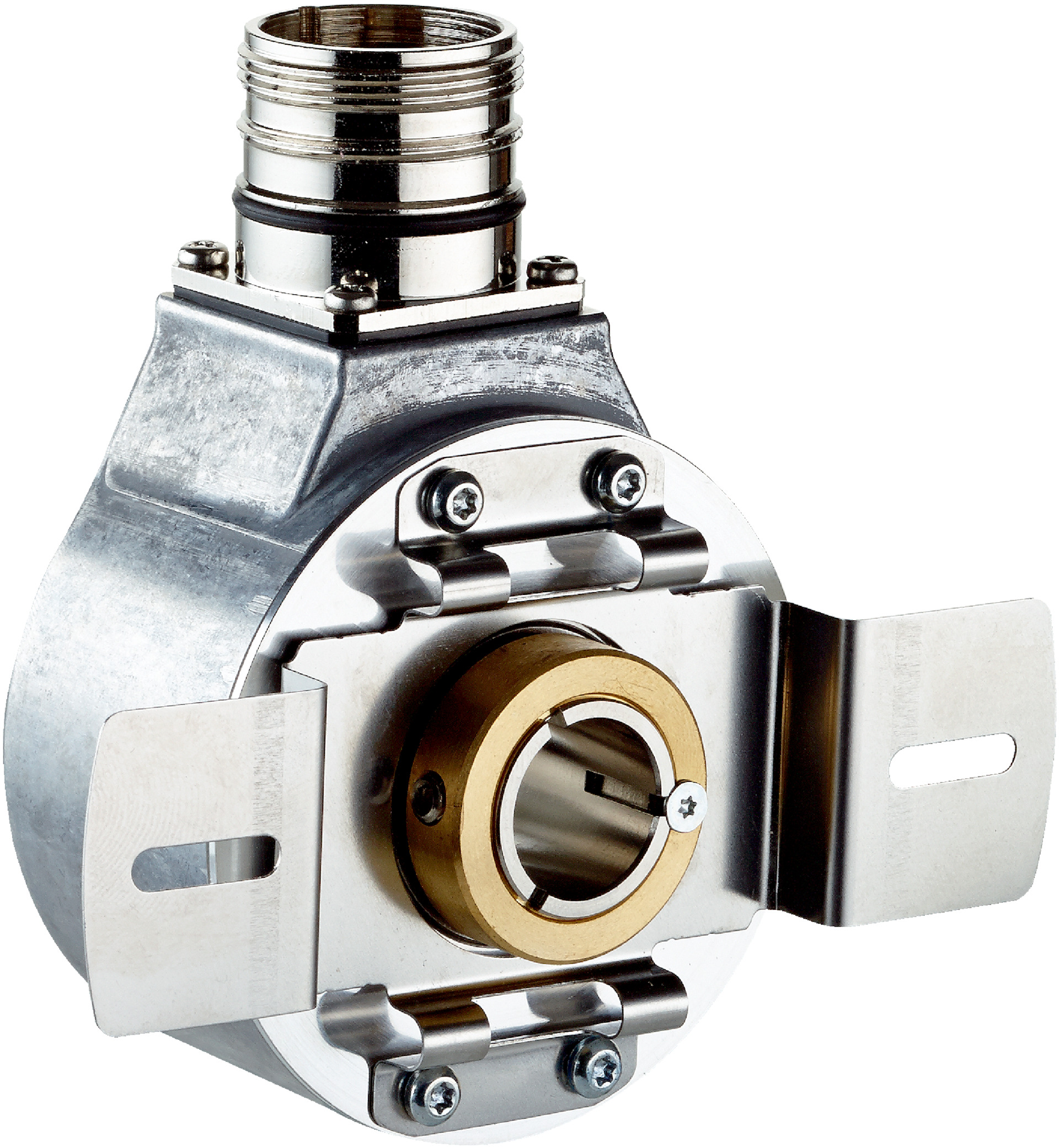

Incremental Encoder DBS60E-TEFA01024 | 1024 Pulses/Rev | IP65 Rated | Hollow Shaft Design | by SICK
The Incremental Encoder DBS60E-TEFA01024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics. With a robust hollow shaft design and IP65 rated enclosure, it ensures reliable performance in harsh environments. Perfect for applications requiring accurate position and speed measurement, this encoder features fast initialization under 5 ms and a wide operating temperature range from -30°C to +100°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-TEFA01024 | 1024 Pulses/Rev | IP65 Rated | Hollow Shaft Design | by SICK
Brand: SICK
SKU: 1077691
Alternatively Known As: Incremental rotary encoder, hollow shaft encoder, industrial position sensor, SICK encoder DBS60E
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 60mm x 83mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft mechanical design with 12 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection
- Fast initialization time under 5 ms
- Operating temperature range from -30°C to +100°C
- High maximum operating speed up to 9,000 min⁻¹
- 6-channel incremental communication interface (TTL/HTL)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and manufacturing equipment
- Safety-related monitoring in automated systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 0.5 W reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-TEFA01024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
