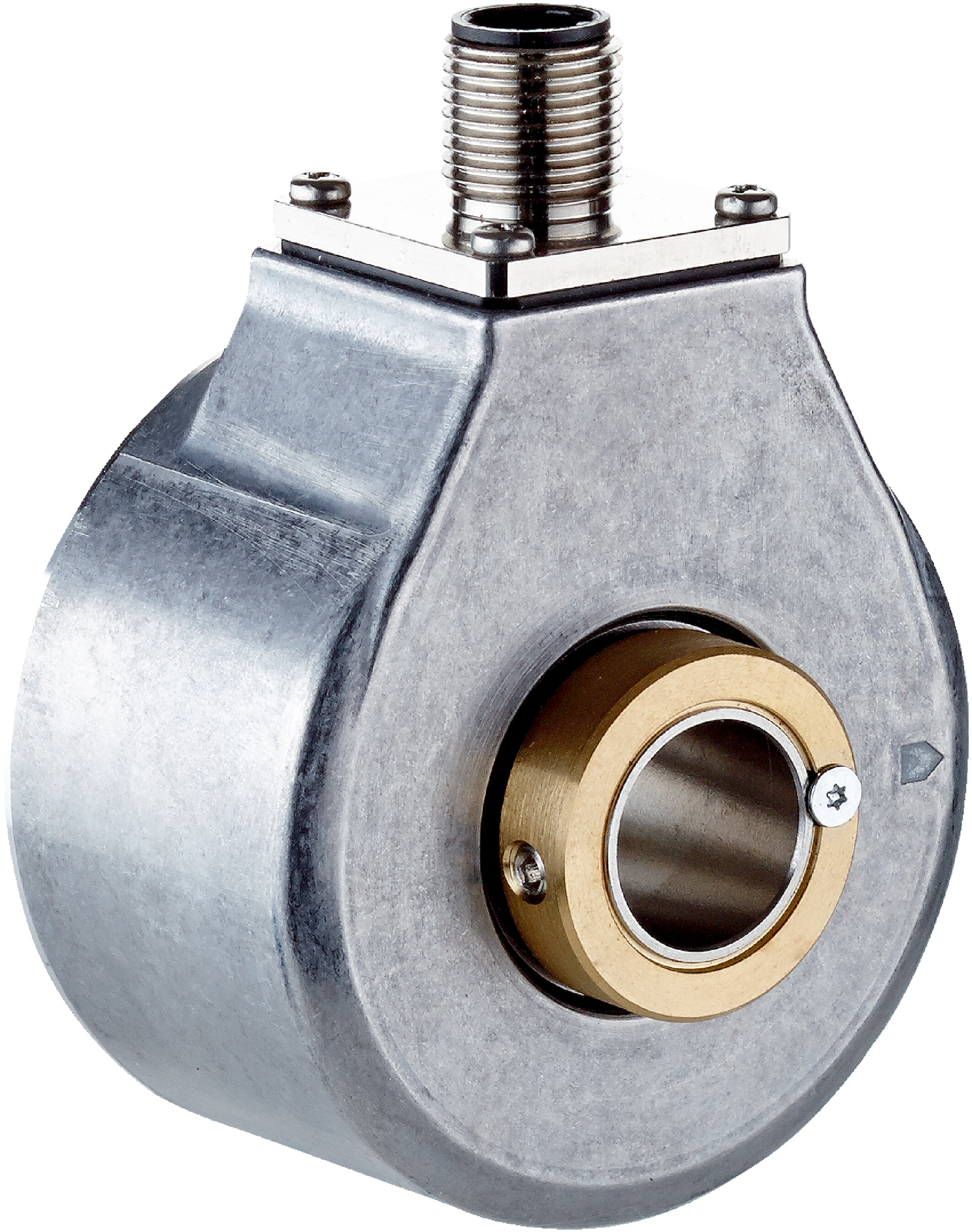

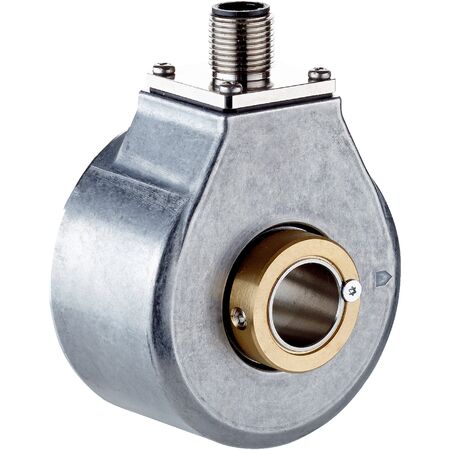

Incremental Encoder DBS60E-REACA1024 | 1024 Pulses/Rev | IP65 Protection | Stainless Steel Shaft | by SICK
The Incremental Encoder DBS60E-REACA1024 offers high resolution with 1,024 pulses per revolution, making it ideal for industrial automation and precise motion control applications. With a robust aluminum housing and IP65 protection, this encoder is built for durability and reliability, ensuring accurate feedback in robotics, conveyor systems, and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-REACA1024 | 1024 Pulses/Rev | IP65 Protection | Stainless Steel Shaft | by SICK
Brand: SICK
SKU: 1147200
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm rear clamping
- Flange type: Without stator coupling, flange with 4 x M2.5
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust aluminum housing with IP65 protection rating
- Through hollow shaft design with 12 mm diameter stainless steel shaft
- TTL / RS-422 incremental communication interface with 6 signal channels
- Short-circuit and reverse polarity protection
- Operating temperature range from -20°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Low operating torque of 0.4 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-REACA1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
