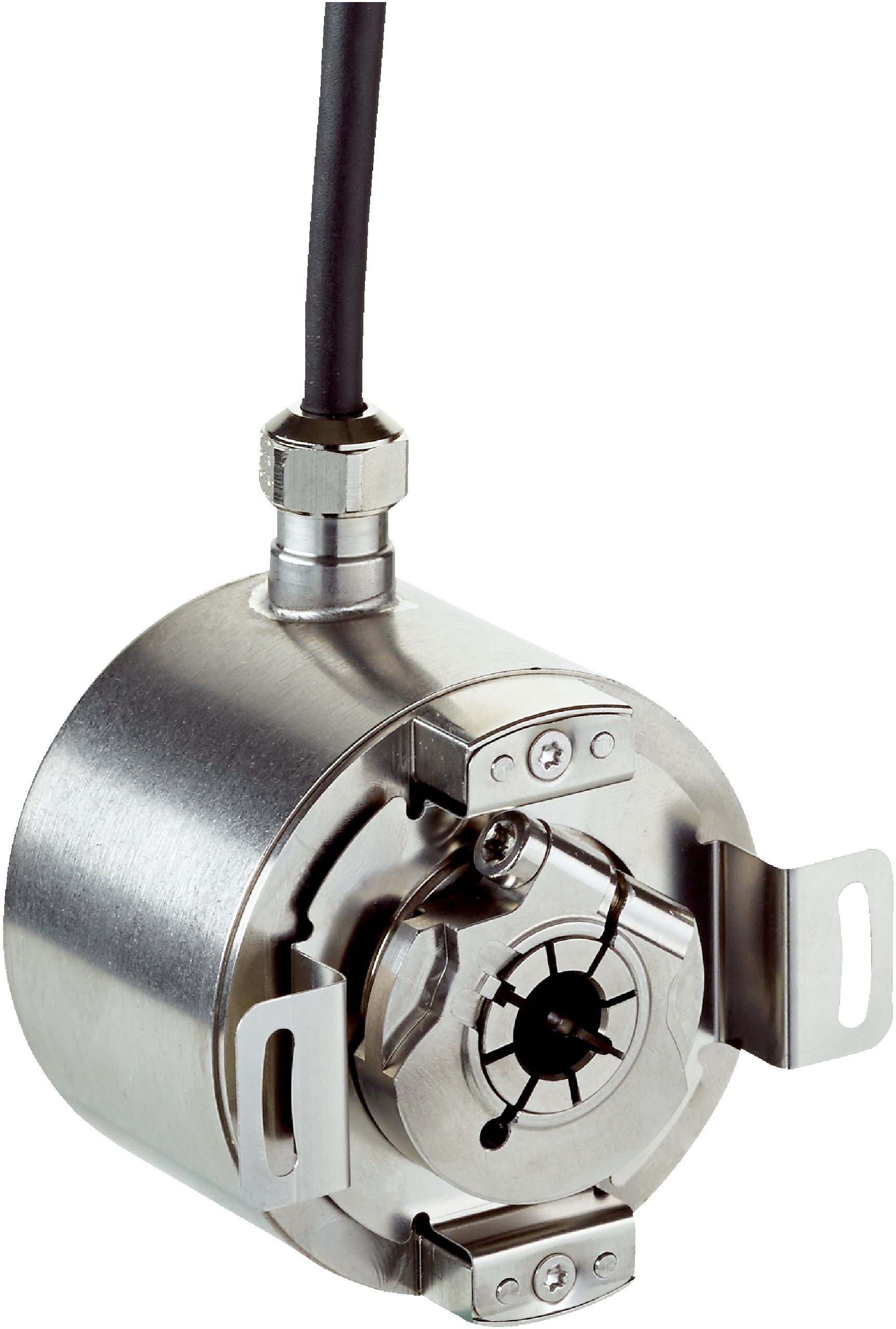

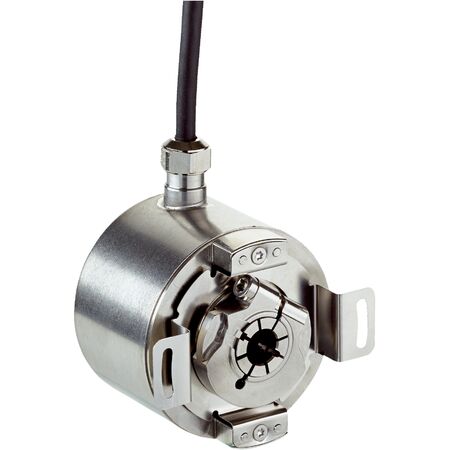

Incremental Encoder DFS60I-BJEK01024 | 1024 Pulses/Rev | IP67 Rated | High Precision | by SICK
The Incremental Encoder DFS60I-BJEK01024 features 1024 pulses per revolution and a robust stainless steel V2A housing, making it ideal for industrial automation and control systems. With a high precision measuring step deviation of ±0.008° and an IP67 rating for dust and water protection, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-BJEK01024 | 1024 Pulses/Rev | IP67 Rated | High Precision | by SICK
Brand: SICK
SKU: 1101287
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, industrial encoder, position sensor
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 10 to 32 V
- Reference signal: 1, position 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 5/8 inch front clamp
- Shaft, flange, housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 100mm x 58mm
- Weight: 0.5 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- 6-channel HTL / Push pull communication interface
- High precision with measuring step deviation ±0.008° and error limits ±0.03°
- Robust stainless steel V2A housing, shaft, and flange
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High operating speed up to 6000 min⁻¹
- Long bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Safety-related monitoring in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption reduces energy usage
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60I-BJEK01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
