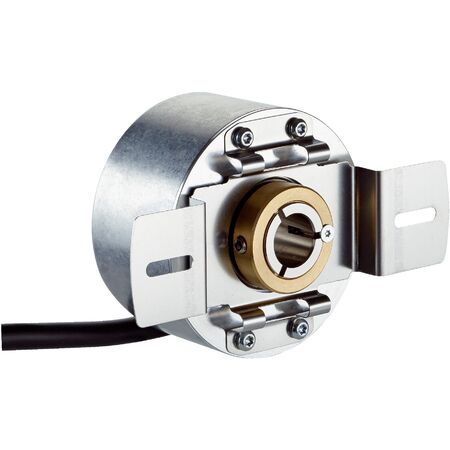

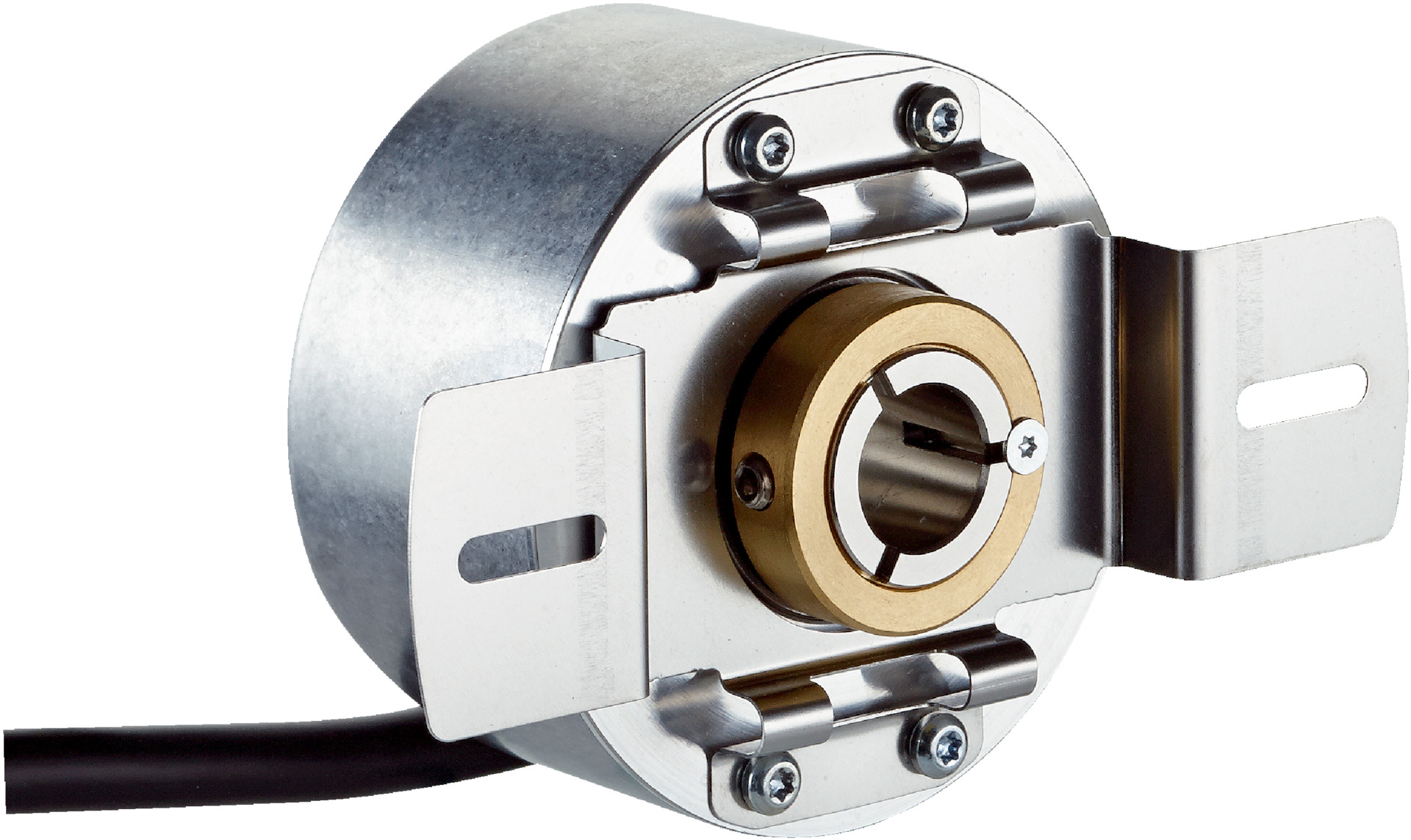

Incremental Encoder DBS60E-BJCK01024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP67 Rated | by SICK
The Incremental Encoder DBS60E-BJCK01024 features 1024 pulses per revolution and a TTL/RS-422 communication interface with 6 signal channels. Designed for industrial automation and robotics, it offers high operating speeds up to 9000 min⁻¹ and a robust stainless steel shaft. With an IP67 rating, this encoder ensures durability in harsh environments, making it ideal for precise motion control and feedback applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BJCK01024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP67 Rated | by SICK
Brand: SICK
SKU: 1070607
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, SICK incremental encoder, DBS60 encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 5/8 inch front clamp
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 60mm x 83mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- TTL / RS-422 communication interface with 6 signal channels
- Robust blind hollow shaft mechanical design with stainless steel shaft
- High operating speed up to 9000 min⁻¹ and durable bearing lifetime
- IP67 rated housing for protection against dust and water
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- Operating temperature range from -30 °C to +100 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool feedback and positioning
- Rotational speed and position measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BJCK01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
