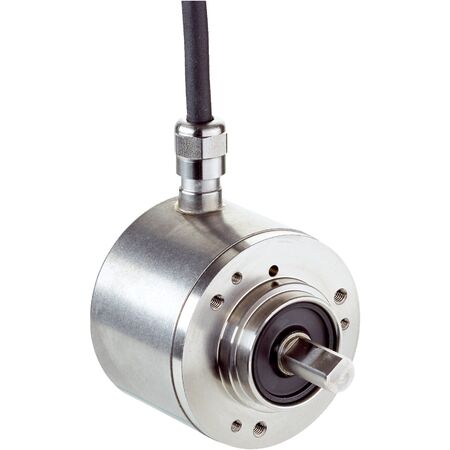

Incremental Encoder DFS60I-S4NL01024 | 1024 Sine/Cosine Periods | IP67 Rated | by SICK
The Incremental Encoder DFS60I-S4NL01024 features a robust design with 1,024 sine/cosine periods per revolution and an IP67 rated enclosure, making it perfect for industrial automation and precision motion control. With high accuracy and a wide operating temperature range from –40 °C to +100 °C, this encoder is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4NL01024 | 1024 Sine/Cosine Periods | IP67 Rated | by SICK
Brand: SICK
SKU: 1101201
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental Sin/Cos
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 200 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Cable, 8-wire, radial, 3 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, electronically gated
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start-up torque: 1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- Incremental communication interface with Sin/Cos signals
- 6-channel output with 1,024 sine/cosine periods per revolution
- High accuracy with measuring step deviation ±0.008° and error limits ±0.03°
- Robust stainless steel V2A housing, shaft, and flange
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from –40 °C to +100 °C
- Reverse polarity and short-circuit protection
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Precision measurement and positioning
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption with 4.5 to 5.5 V supply voltage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4NL01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
