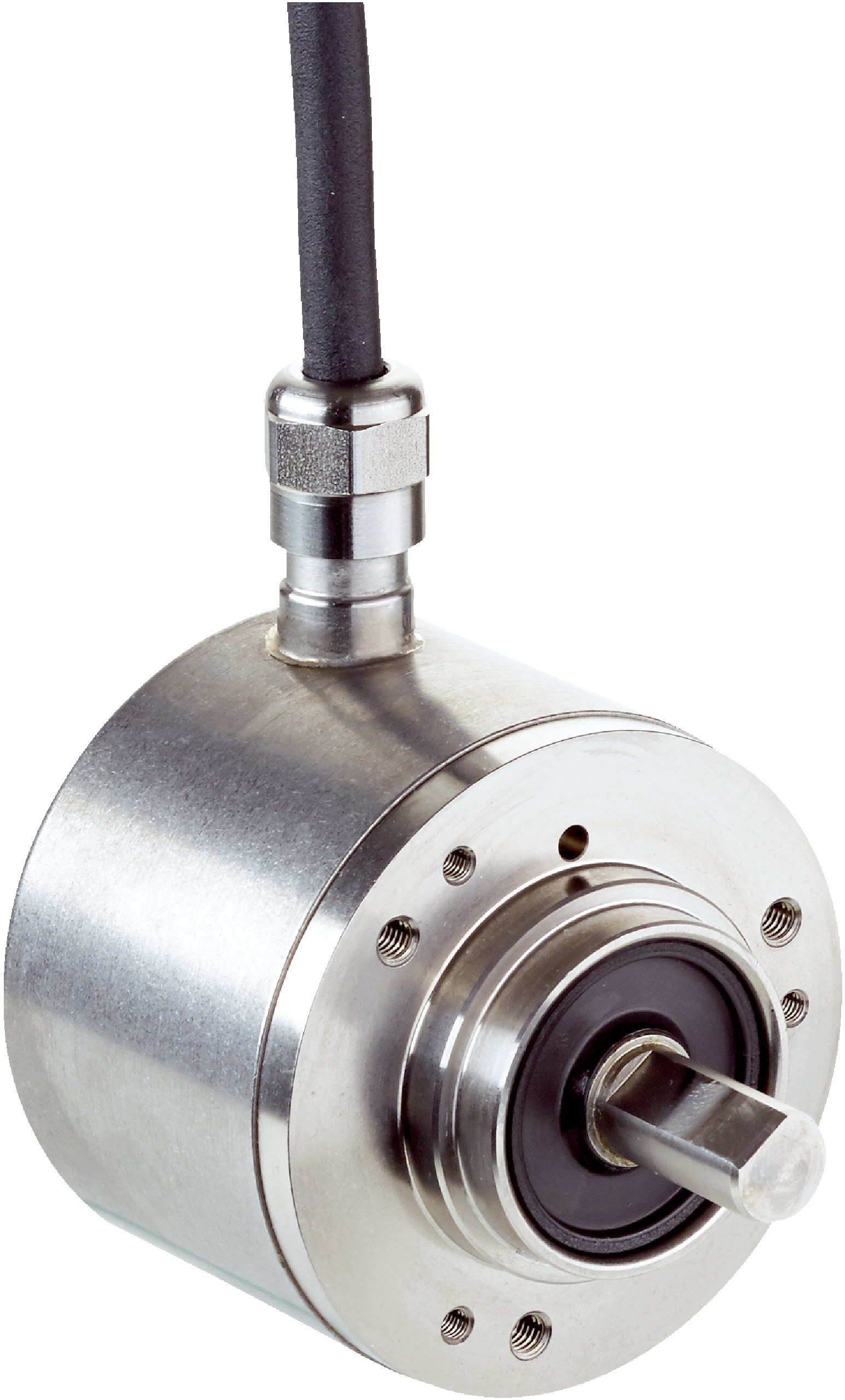

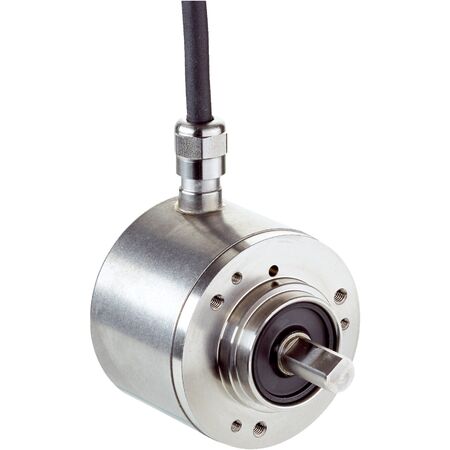

Incremental Encoder DFS60I-S4EM16384 | 16384 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60I-S4EM16384 offers high precision with 16,384 pulses per revolution, making it ideal for industrial automation and robotics. With an IP67 rated enclosure, it ensures protection against dust and water, while its robust design supports high permissible shaft loading. Perfect for applications requiring accurate position and speed measurement, this encoder is built for reliability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4EM16384 | 16384 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1145866
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, industrial position sensor, SICK DFS60 encoder
Technical Specifications
- Pulses per revolution: 16,384
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull, 6-channel
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Supply voltage: 10 to 32 V
- Connection type: 8-wire cable, radial, 5 m length
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- Enclosure rating: IP67 (housing and shaft side)
- Operating temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 16,384 pulses per revolution
- Solid shaft with stainless steel housing and flange
- IP67 rated enclosure for dust and water protection
- Robust mechanical design with high permissible shaft loading
- Short-circuit and reverse polarity protection
- Fast initialization time of 40 ms
- Operating temperature range from -40°C to +100°C
- 6-channel incremental communication interface (HTL / Push pull)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption of ≤ 0.5 W reduces energy usage
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4EM16384 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
