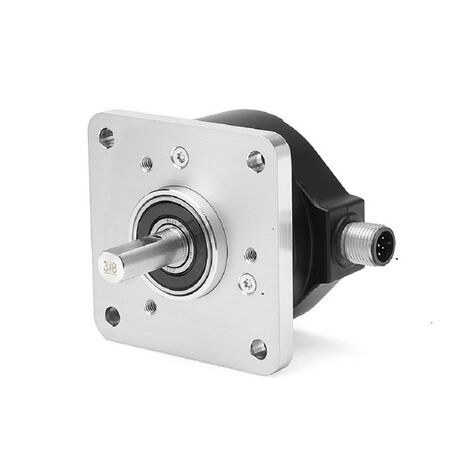

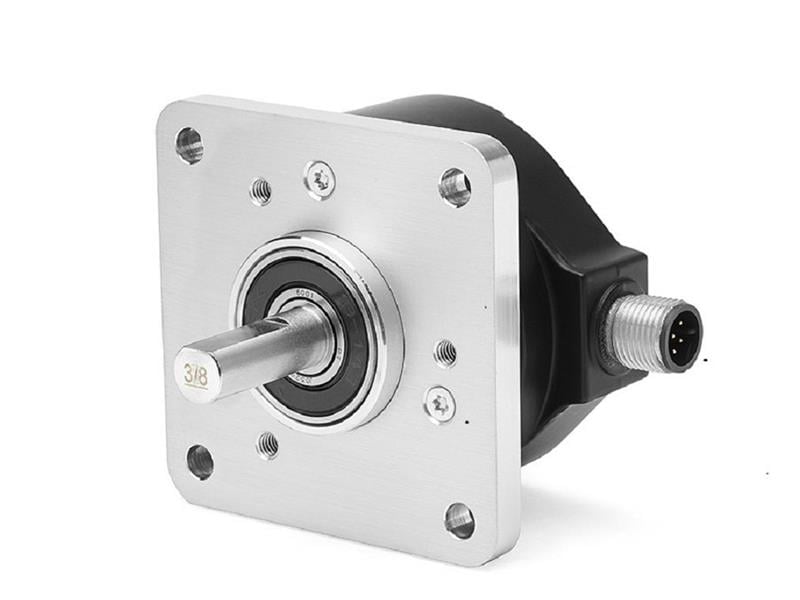

Product Name/Title: Allen-Bradley 847HDN2AAH01000 Incremental Encoder 2.5 Inch Diameter
Brand: Allen-Bradley
SKU: 847HDN2AAH01000
Alternatively Known As: Incremental Rotary Encoder, Solid Shaft Encoder, Allen-Bradley Encoder 847HDN2AAH01000
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Output Type: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin
- Pulses Per Revolution: 1000 PPR
- Exit Type: Axial
- Supply Voltage: 8-30 VDC
- Dimensions (H x L x W): 64mm x 100mm x 64mm
- Weight: 0.5 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- Axial exit with MS connector
- 10 pin connector
- 1000 pulses per revolution (PPR)
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 8-30 VDC supply
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN2AAH01000 Incremental Encoder is available now for immediate purchase. Ideal for industrial automation and precise position feedback applications.
