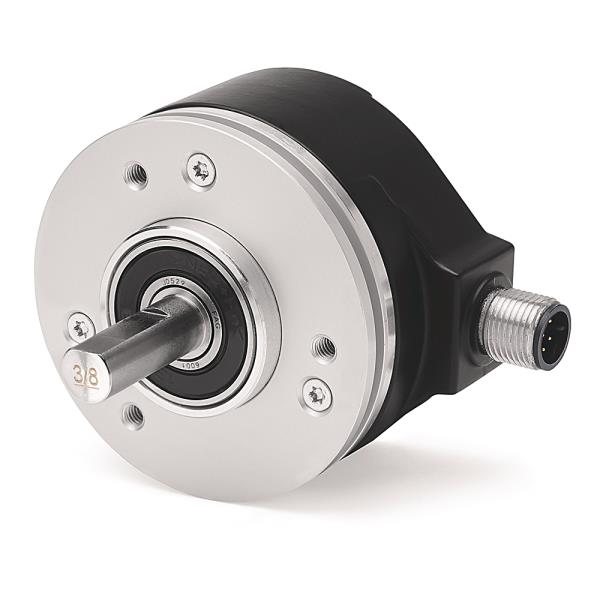

Product Name/Title: Allen-Bradley 847HHN2ARG01000 Incremental Encoder 2.5 Inch Diameter
Brand: Allen-Bradley
SKU: 847HHN2ARG01000
Alternatively Known As: Incremental Rotary Encoder, Servo Mount Encoder, 1000 PPR Encoder
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Supply Voltage: 8-30 VDC
- Output: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin with mate
- Mounting: Standard servo mount
- Pulses Per Revolution: 1000 PPR
- Exit Type: Radial
- Dimensions (H x L x W): 64mm x 64mm x 64mm
- Weight: 0.3 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard servo mount
- 3/8 inch diameter shaft with flat
- Radial exit with MS connector
- 10 pin with mate
- 1000 pulses per revolution (PPR)
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Position and speed sensing in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by providing accurate motor feedback for optimized control
- Durable design reduces waste and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HHN2ARG01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
