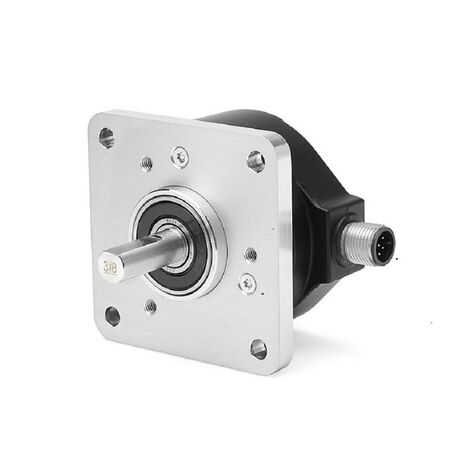

Incremental Encoder 2.5 Inch Diameter | 1000 PPR | 8-30 VDC Supply | by Allen-Bradley
The Incremental Encoder 2.5 Inch Diameter from Allen-Bradley is designed for precision in industrial automation and control systems. With a robust 1000 pulses per revolution and a supply voltage range of 8-30 VDC, it ensures reliable position feedback for robotics, conveyor systems, and motor control. Its standard square flange mounting and axial exit with MS connector make installation straightforward for qualified technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 8-30 VDC
- Output Type: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin plus mate
- Pulses Per Revolution (PPR): 1000
- Exit Type: Axial
- Dimensions (H x L x W): 63mm x 100mm x 63mm
- Weight: 0.5 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- Axial exit with MS connector
- 10 pin plus mate connector
- 1000 pulses per revolution (PPR)
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by enabling precise motor control
- Reduces waste through accurate process monitoring and control
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN2AAG01000 Incremental Encoder is available now for immediate purchase. Ideal for industrial automation and control system applications.
