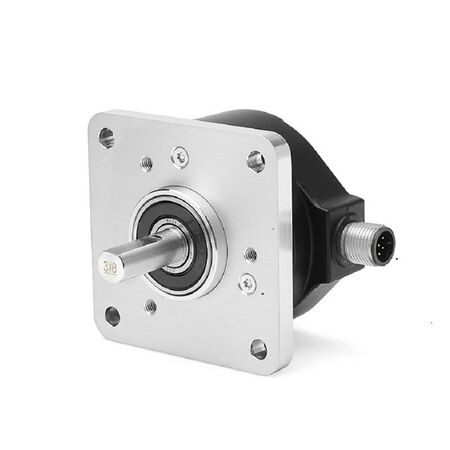

Incremental Encoder 2.5 Inch Diameter | 1000 PPR | 8-30 VDC Supply | by Allen-Bradley
The Incremental Encoder 2.5 Inch Diameter from Allen-Bradley is designed for precision in industrial automation, featuring a 1000 pulses per revolution (PPR) output and an 8-30 VDC supply voltage. Ideal for robotics, conveyor systems, and manufacturing process monitoring, this encoder ensures reliable position feedback and is built for durability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 8-30 VDC
- Output: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin with mate
- Pulse Rate: 1000 pulses per revolution (PPR)
- Exit Type: Radial
- Dimensions (H x L x W): 64mm x 50mm x 64mm
- Weight: 0.5 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
- Radial exit cable
- MS connector with 10 pin mate
- 1000 pulses per revolution (PPR)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 8-30 VDC supply
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN2ARG01000 Incremental Encoder is available now for immediate purchase. Ideal for industrial automation and precise position feedback applications.
