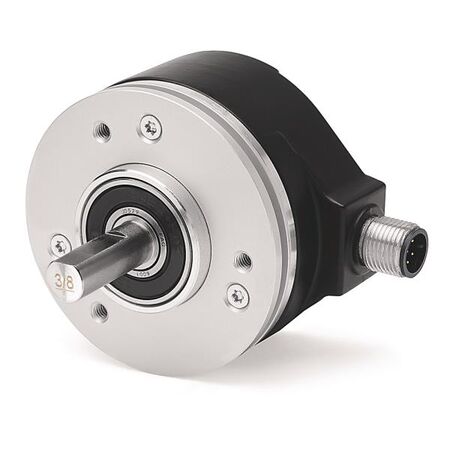

Incremental Encoder 2.5 Inch Diameter | 1000 PPR | 8-30 VDC Supply | by Allen-Bradley
The Incremental Encoder 2.5 Inch Diameter is designed for precise position and speed sensing in industrial automation. With a robust 1000 pulses per revolution and a supply voltage range of 8-30 VDC, this encoder is perfect for servo motor feedback applications. Its standard servo mount and radial exit with MS connector ensure easy installation and reliable performance for technicians and electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Supply Voltage: 8-30 VDC
- Output: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin with mate
- Mounting: Standard servo mount
- Pulses Per Revolution: 1000 PPR
- Exit Type: Radial
- Dimensions (H x L x W): 64mm x 64mm x 64mm
- Weight: 0.3 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard servo mount
- 3/8 inch diameter shaft with flat
- Radial exit with MS connector
- 10 pin with mate
- 1000 pulses per revolution (PPR)
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Position and speed sensing in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by providing accurate motor feedback for optimized control
- Durable design reduces waste and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HHN2ARG01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
