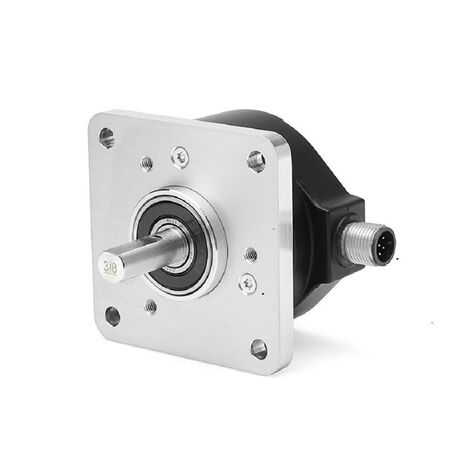

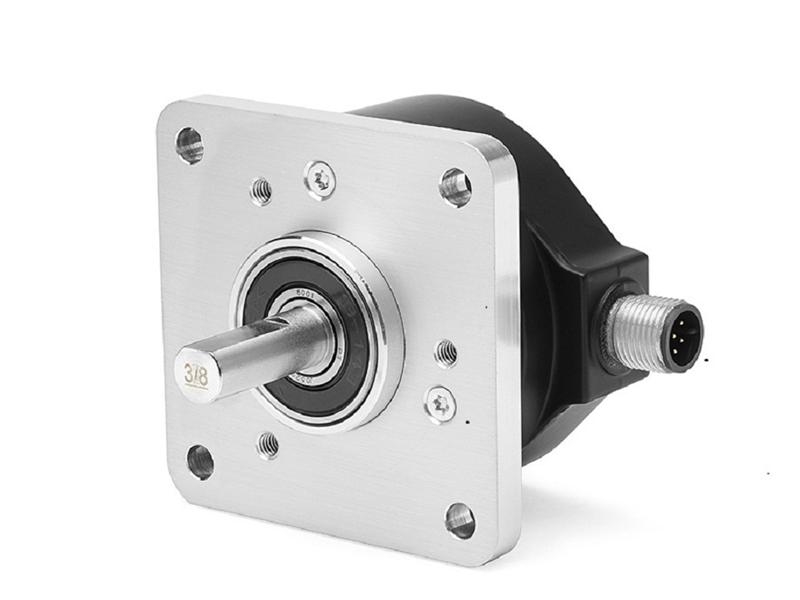

Product Name/Title: Allen-Bradley 847HDN2ARG01024 Incremental Encoder 2.5 Inch Diameter
Brand: Allen-Bradley
SKU: 847HDN2ARG01024
Alternatively Known As: Incremental rotary encoder, 2.5 inch encoder, solid shaft encoder, Allen-Bradley rotary encoder
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 8-30 VDC
- Output: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin with mate
- Pulses Per Revolution (PPR): 1024
- Exit Type: Radial
- Dimensions (H x L x W): 64mm x 80mm x 64mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 2.5 inch diameter
- Solid shaft with 3/8 inch diameter and flat
- Standard square flange mounting
- Radial exit with MS connector
- 10 pin connector with mate
- 1024 pulses per revolution (PPR)
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves efficiency and accuracy in industrial automation, reducing waste and energy consumption.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN2ARG01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
