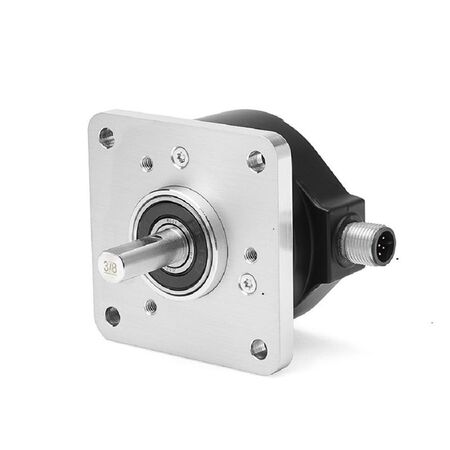

Incremental Encoder 2.5 Inch Diameter | 1024 PPR | 8-30 VDC Supply | by Allen-Bradley
The Incremental Encoder 2.5 Inch Diameter is designed for precision in industrial automation, featuring a solid shaft with a 3/8 inch diameter and 1024 pulses per revolution. Ideal for robotics and conveyor systems, it operates on an 8-30 VDC supply voltage and provides reliable feedback for motor control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 8-30 VDC
- Output: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin with mate
- Pulses Per Revolution (PPR): 1024
- Exit Type: Radial
- Dimensions (H x L x W): 64mm x 80mm x 64mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 2.5 inch diameter
- Solid shaft with 3/8 inch diameter and flat
- Standard square flange mounting
- Radial exit with MS connector
- 10 pin connector with mate
- 1024 pulses per revolution (PPR)
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves efficiency and accuracy in industrial automation, reducing waste and energy consumption.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN2ARG01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
