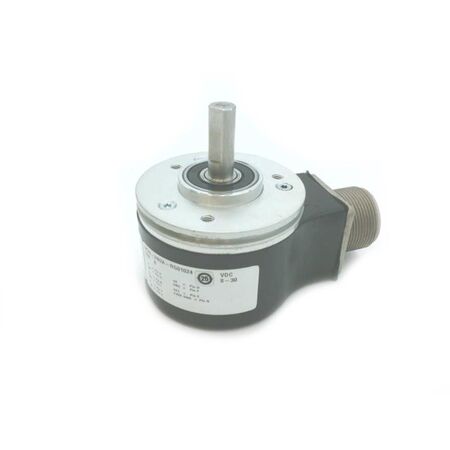

Incremental Encoder 2.5 Inch Diameter | 1024 PPR | 8-30 VDC Supply | by Allen-Bradley
The Incremental Encoder 2.5 Inch Diameter is designed for precise motor control in industrial automation. With a supply voltage range of 8-30 VDC and 1024 pulses per revolution, it’s perfect for servo motor feedback and position sensing. Built for reliability, this encoder features a standard servo mount and radial exit with a 10-pin MS connector, making it ideal for various machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Supply Voltage: 8-30 VDC
- Output Voltage: 4.5-5.5 VDC line driver
- Pulses Per Revolution (PPR): 1024
- Connector Type: MS connector, 10 pin with mate
- Mounting: Standard servo mount
- Exit Type: Radial
- Dimensions (H x L x W): 64mm x 100mm x 64mm
- Weight: 0.3 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard servo mount
- 3/8 inch diameter shaft with flat
- Radial exit with MS connector
- 10 pin with mate
- 1024 pulses per revolution (PPR)
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Position and speed sensing in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by enabling precise motor control and reducing wasteful operation.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HHN2ARG01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
