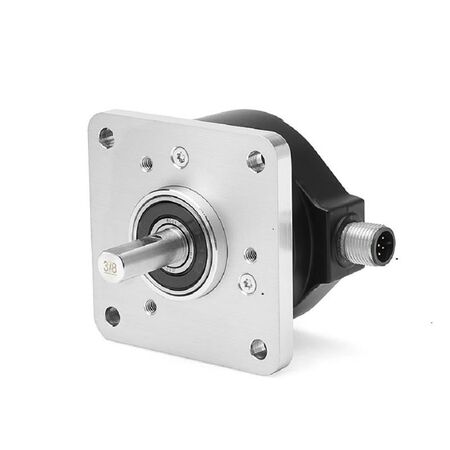

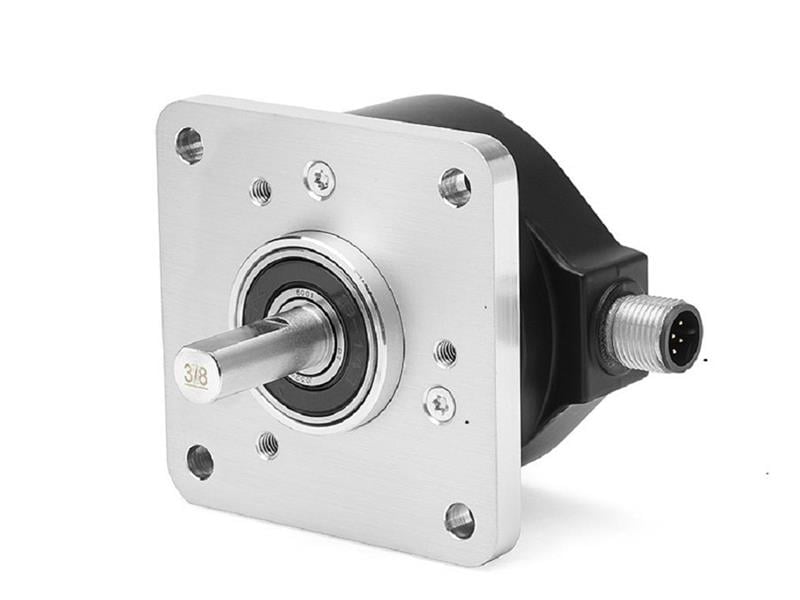

Incremental Encoder 2.5 Inch Diameter | 1024 PPR | Standard Square Flange | by Allen-Bradley
The Incremental Encoder 2.5 Inch Diameter from Allen-Bradley features a robust design with 1024 pulses per revolution, making it ideal for industrial automation and control systems. With a standard square flange and a 3/8 inch shaft diameter, this encoder ensures precise position feedback for robotics and machinery applications, enhancing system efficiency and reducing energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 4.5-5.5 VDC
- Output Type: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin with mate
- Pulses Per Revolution: 1024 PPR
- Exit Type: Radial
- Dimensions (H x L x W): 63mm x 50mm x 63mm
- Weight: 0.3 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- 4.5-5.5 VDC supply voltage
- 4.5-5.5 VDC line driver output
- Radial exit with MS connector
- 10 pin connector with mate
- 1024 pulses per revolution (PPR)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves system efficiency by providing accurate position feedback, reducing energy waste.
- Durable design reduces replacement frequency and electronic waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN1ARG01024 Incremental Encoder is available now for immediate purchase. Ideal for industrial automation and control system applications.
