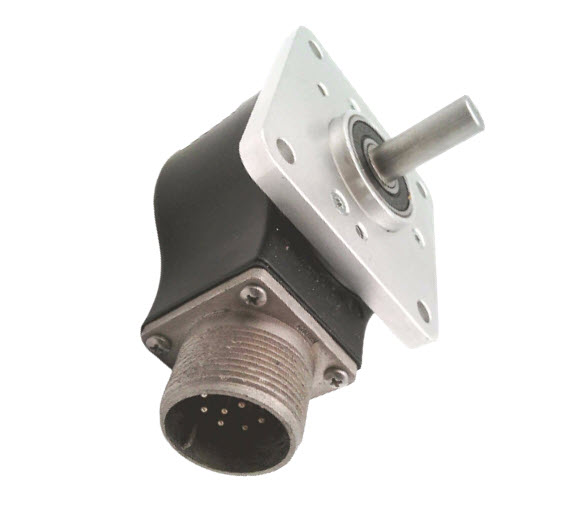

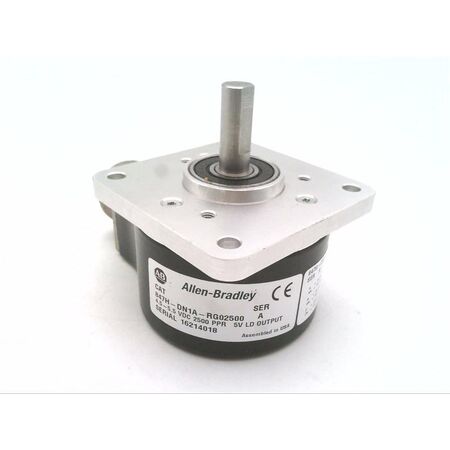

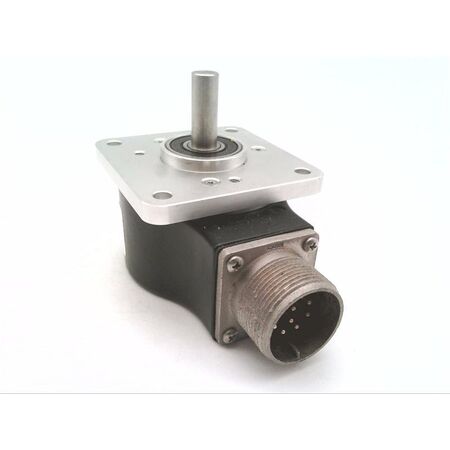

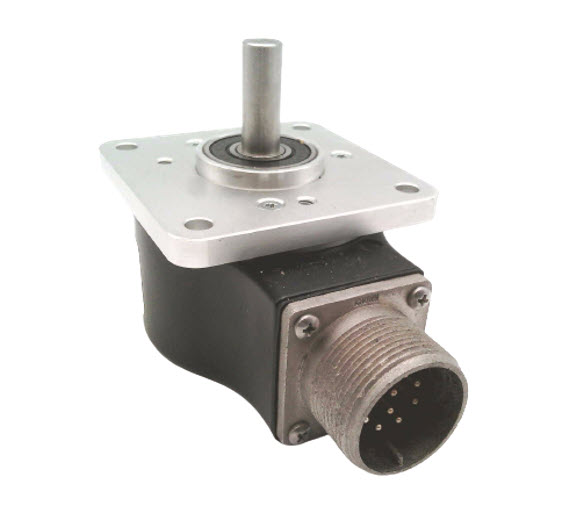

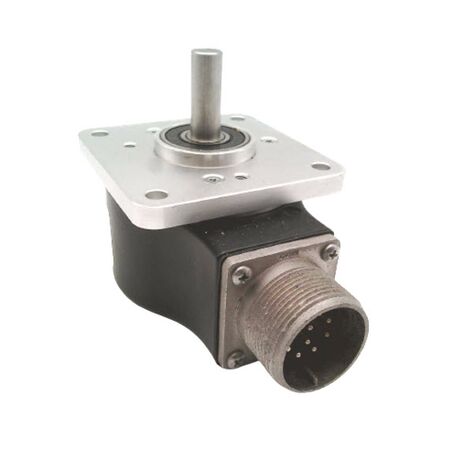

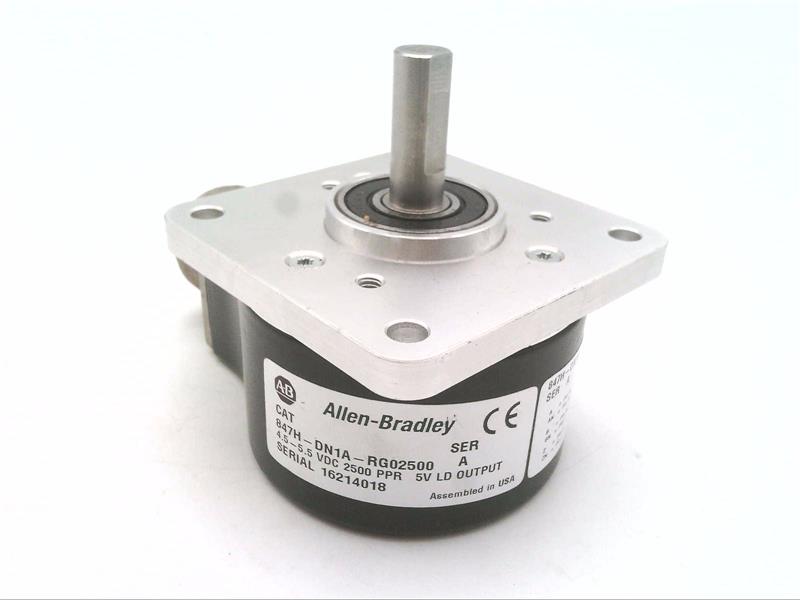

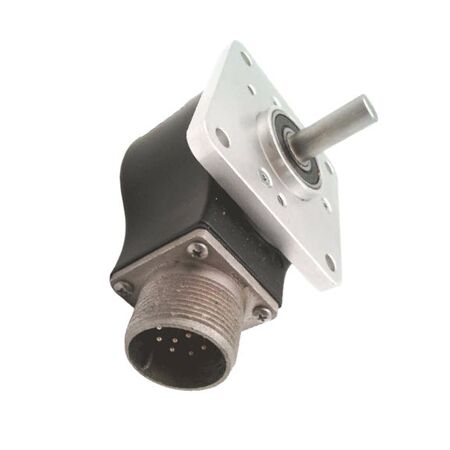

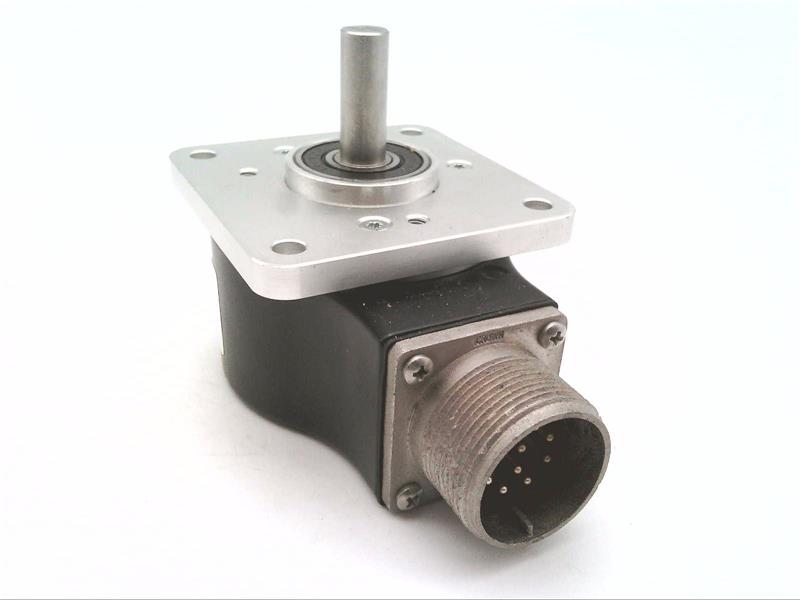

Product Name/Title: Allen-Bradley 847HDN1ARG02500 Incremental Encoder 2.5 Inch Diameter
Brand: Allen-Bradley
SKU: 847HDN1ARG02500
Alternatively Known As: Incremental Rotary Encoder, Solid Shaft Encoder, 2.5 Inch Encoder, 2500 PPR Encoder
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Supply Voltage: 4.5-5.5 VDC
- Output Type: 4.5-5.5 VDC line driver
- Connector Type: MS connector, 10 pin with mate
- Pulse Rate: 2500 pulses per revolution
- Mounting: Standard square flange
- Exit Type: Radial
- Dimensions (H x L x W): 63mm x 63mm x 63mm
- Weight: 0.5 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- 4.5-5.5 VDC supply voltage
- 4.5-5.5 VDC line driver output
- Radial exit with MS connector
- 10 pin connector with mate
- 2500 pulses per revolution (PPR)
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper alignment and electrical connections.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring precise position feedback
- Conveyor systems and motor feedback applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports energy-efficient motor control by providing accurate feedback to reduce energy waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN1ARG02500 Incremental Encoder is available now for immediate purchase. Ideal for industrial automation and precise motion control applications.
