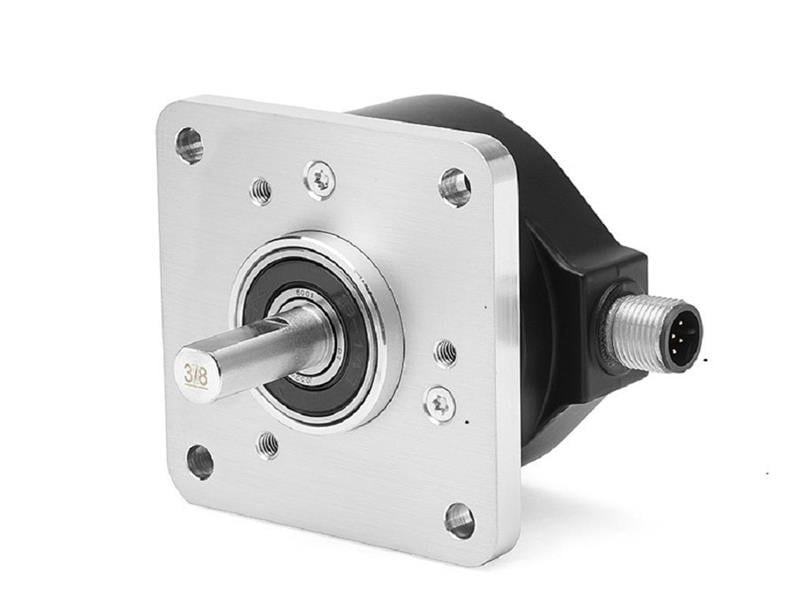

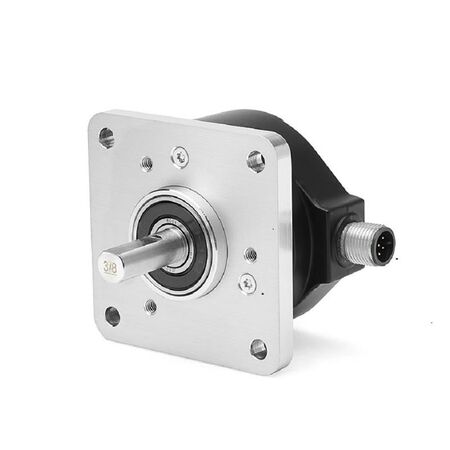

Product Name/Title: Allen-Bradley 847HDN2AAG03600 Incremental Encoder 2.5 Inch Diameter
Brand: Allen-Bradley
SKU: 847HDN2AAG03600
Alternatively Known As: Incremental rotary encoder, shaft encoder, position encoder, Allen-Bradley encoder 847HDN2AAG03600
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 8-30 VDC
- Output: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin plus mate
- Pulses Per Revolution (PPR): 3600
- Exit Type: Axial
- Dimensions (H x L x W): 64mm x 64mm x 64mm
- Weight: 0.5 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- Axial exit with MS connector
- 10 pin plus mate connector
- 3600 pulses per revolution (PPR)
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
- Precision measurement and motion control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by enabling precise motor control and reducing waste.
- Durable design reduces replacement frequency and electronic waste.
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN2AAG03600 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
