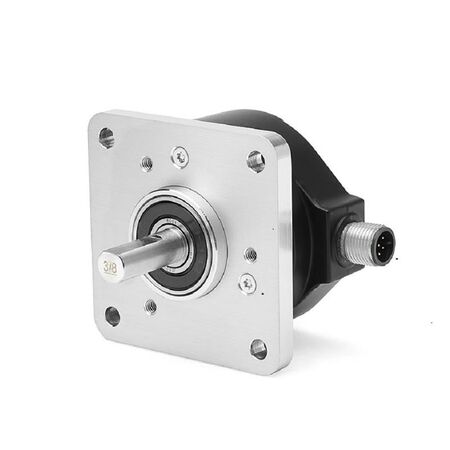

Incremental Encoder 2.5 Inch Diameter | 3600 PPR | 8-30 VDC Supply | by Allen-Bradley
The Incremental Encoder 2.5 Inch Diameter from Allen-Bradley is designed for precision motion control, featuring a robust 3600 pulses per revolution (PPR) and an 8-30 VDC supply voltage. Ideal for industrial automation, robotics, and conveyor systems, this encoder ensures accurate position feedback and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 8-30 VDC
- Output: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin plus mate
- Pulses Per Revolution (PPR): 3600
- Exit Type: Axial
- Dimensions (H x L x W): 64mm x 64mm x 64mm
- Weight: 0.5 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- Axial exit with MS connector
- 10 pin plus mate connector
- 3600 pulses per revolution (PPR)
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
- Precision measurement and motion control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by enabling precise motor control and reducing waste.
- Durable design reduces replacement frequency and electronic waste.
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN2AAG03600 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
