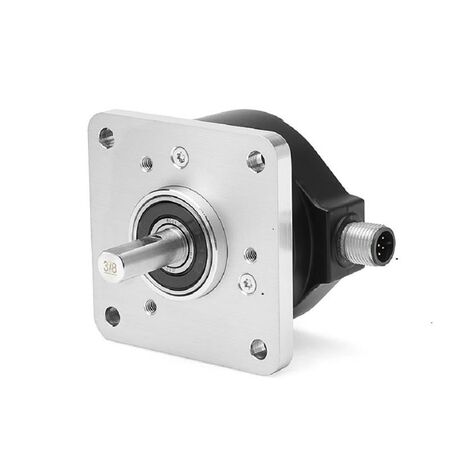

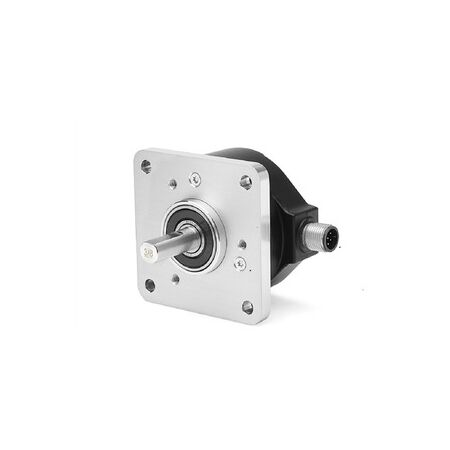

Incremental Encoder 2.5 Inch Diameter | 500 PPR | 8-30 VDC Supply | by Allen-Bradley
The Incremental Encoder 2.5 Inch Diameter is designed for precision in industrial automation, featuring a 500 pulses per revolution (PPR) output and a supply voltage range of 8-30 VDC. Ideal for robotics and machinery position feedback, this encoder ensures reliable performance with a standard square flange for easy mounting and a radial exit cable for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 8-30 VDC
- Output Type: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin with mate
- Exit Type: Radial
- Pulses Per Revolution: 500 PPR
- Dimensions (H x L x W): 64mm x 64mm x 64mm
- Weight: 0.3 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
- Radial exit cable
- MS connector with 10 pin mate
- 500 pulses per revolution (PPR)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 8-30 VDC supply
- Durable design reduces waste and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN2ARG00500 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
