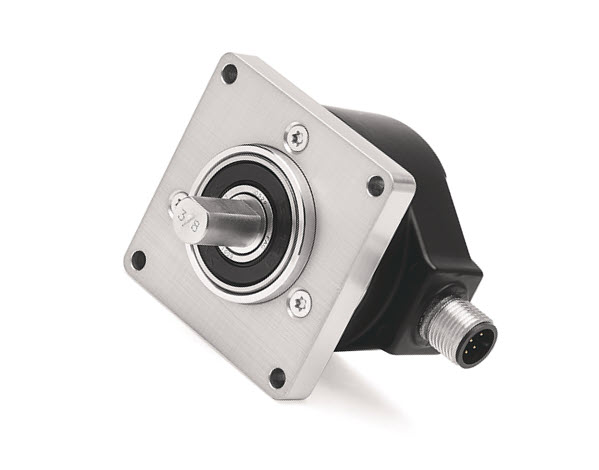

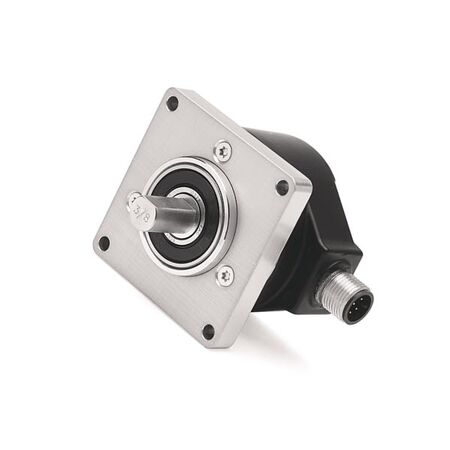

Incremental Encoder 2 Inch Diameter | 100 PPR | Solid Shaft & HTL Output | by Allen-Bradley

SKU: 847TDN2CRG00100
$1,056.80 List price: $1,316.90
+
Incremental Encoder 2 Inch Diameter | 100 PPR | Solid Shaft & HTL Output | by Allen-Bradley

Product Name/Title: Allen-Bradley 847TDN2CRG00100 Incremental Encoder 2 Inch Diameter

Brand: Allen-Bradley

SKU: 847TDN2CRG00100

Alternatively Known As: Incremental rotary encoder, 2 inch encoder, Allen-Bradley rotary encoder, HTL encoder, 100 PPR encoder

Technical Specifications
  • Diameter: 2 inches
  • Shaft: Solid, 3/8 inch diameter with flat
  • Mounting: Standard square flange
  • Power Supply: 8-30 V DC
  • Output Type: 8-30V line driver (HTL)
  • Exit: Radial
  • Connector: MS 10-pin with mating connector
  • Signal: B leads A, clockwise rotation
  • Index: Z gated with BN
  • Resolution: 100 pulses per revolution (PPR)
  • Dimensions (H x L x W): 50mm x 50mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 2 inch diameter solid shaft
  • Standard square flange mounting
  • 3/8 inch diameter shaft with flat
  • 8-30 V DC power supply
  • 8-30V line driver (HTL) output
  • Radial exit cable
  • MS 10-pin connector with mating connector
  • B leads A, clockwise rotation
  • Z gated with BN signal
  • 100 pulses per revolution (PPR)
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper wiring and operation.
Applications
  • Industrial automation and control systems
  • Robotics and machinery position feedback
  • Conveyor systems and motor control
  • Manufacturing process monitoring
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Improves energy efficiency by providing precise motor control
  • Reduces waste through accurate position feedback and process control
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 847TDN2CRG00100 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
