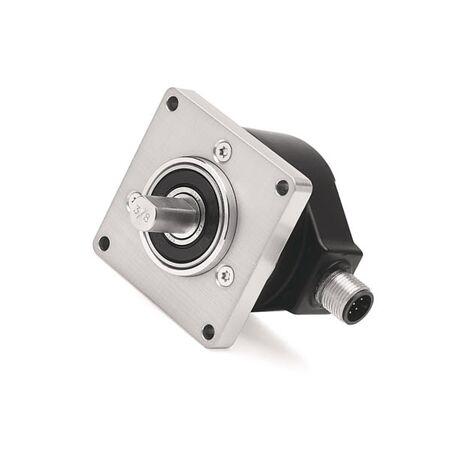

Incremental Encoder 2 Inch Diameter | 100 PPR | Solid Shaft & HTL Output | by Allen-Bradley
The Incremental Encoder 2 Inch Diameter from Allen-Bradley is designed for precision in industrial automation, featuring a solid 3/8 inch shaft and 100 pulses per revolution (PPR). Ideal for robotics and conveyor systems, it operates on an 8-30 V DC power supply and provides reliable position feedback with its HTL output. Perfect for enhancing motor control and process monitoring in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 2 inches
- Shaft: Solid, 3/8 inch diameter with flat
- Mounting: Standard square flange
- Power Supply: 8-30 V DC
- Output Type: 8-30V line driver (HTL)
- Exit: Radial
- Connector: MS 10-pin with mating connector
- Signal: B leads A, clockwise rotation
- Index: Z gated with BN
- Resolution: 100 pulses per revolution (PPR)
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- 2 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- 8-30 V DC power supply
- 8-30V line driver (HTL) output
- Radial exit cable
- MS 10-pin connector with mating connector
- B leads A, clockwise rotation
- Z gated with BN signal
- 100 pulses per revolution (PPR)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by providing precise motor control
- Reduces waste through accurate position feedback and process control
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847TDN2CRG00100 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
