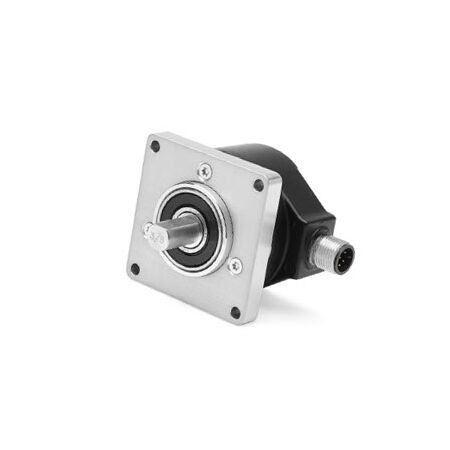

Incremental Encoder 2 Inch Diameter | 1000 PPR | 8-30 VDC Line Driver | by Allen-Bradley
The Incremental Encoder 2 Inch Diameter from Allen-Bradley features a robust design with a 1000 pulses per revolution (PPR) output and operates on 8-30 VDC line driver. Perfect for industrial automation and robotics, this encoder ensures precise position feedback and is built for reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Output Type: 8-30 V line driver (HTL)
- Connector: MS 6-pin with mating connector
- Pulse Rate: 1000 pulses per revolution (PPR)
- Rotation Direction: Clockwise (CW)
- Signal: B leads A, Z gated with BN
- Mounting: Standard square flange
- Exit Type: Radial
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- 8-30 VDC line driver (HTL) operation
- Radial exit with MS 6-pin connector
- 1000 pulses per revolution (PPR)
- CW rotation with gated Z channel
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 8-30 VDC operation
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847TDN2CRC01000 Incremental Encoder is available now for immediate purchase. Ideal for industrial automation and precise position feedback applications.
