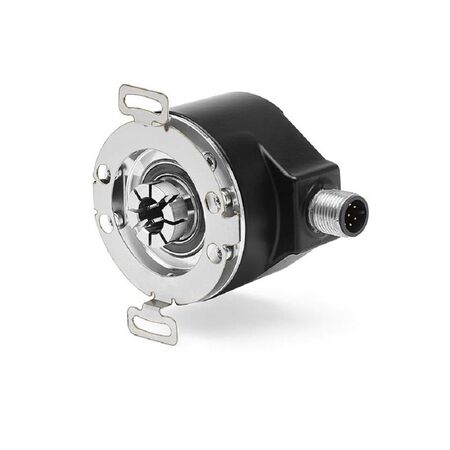

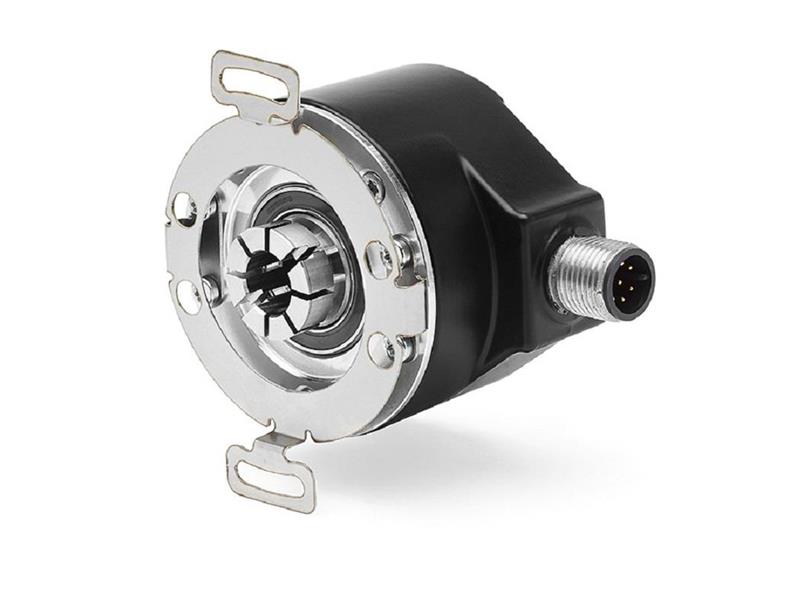

Product Name/Title: Allen-Bradley 847AQ32CRP02500 Incremental Encoder 2 Inch Diameter
Brand: Allen-Bradley
SKU: 847AQ32CRP02500
Alternatively Known As: Incremental rotary encoder, shaft encoder, rotary position sensor
Technical Specifications
- Diameter: 2 inches
- Mounting: 3 point
- Shaft: 3/8 inch diameter hollow shaft
- Power Supply: 8-30 V DC
- Output: 8-30 V line driver (HTL)
- Cable: 1.5 meter radial exit cable
- Signal: B leads A, clockwise rotation
- Index: Z gated with BN
- Resolution: 2500 pulses per revolution (PPR)
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 inch diameter blind hollow incremental encoder
- 3 point mounting for secure installation
- 3/8 inch diameter hollow shaft
- 8-30 V DC power supply
- 8-30 V line driver (HTL) output
- Radial cable exit with 1.5 meter cable
- B leads A, clockwise rotation
- Z gated with BN signal
- 2500 pulses per revolution (PPR)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation and control systems
- Rotational position sensing
- Motor feedback and speed monitoring
- Robotics and machinery requiring precise shaft position feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports energy-efficient motor control by providing accurate feedback
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847AQ32CRP02500 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
