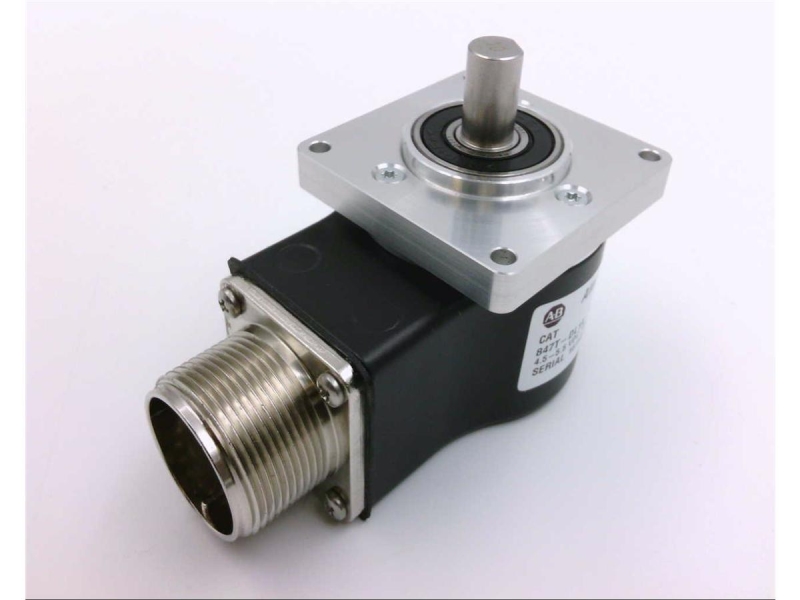

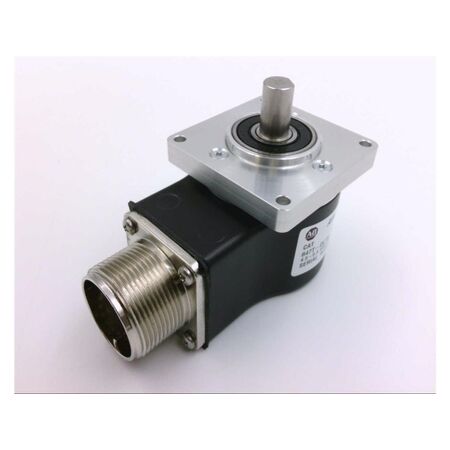

Product Name/Title: Allen-Bradley 847TDL1ARH02500 Incremental Encoder 2 Inch Diameter
Brand: Allen-Bradley
SKU: 847TDL1ARH02500
Alternatively Known As: Incremental rotary encoder, 2 inch shaft encoder, Allen-Bradley rotary encoder
Technical Specifications
- Shaft Diameter: 10 mm with flat
- Flange Type: Standard square flange
- Output Type: Incremental
- Resolution: 2500 pulses per revolution
- Voltage: 4.5-5.5 VDC
- Connector: 10 pin without mating connector
- Exit Type: Radial
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Incremental encoder with 2 inch diameter
- Solid shaft with 10 mm diameter and flat
- Standard square flange mounting
- Radial exit cable
- 10 pin connector without mating connector
- Operating voltage: 4.5-5.5 VDC
- High resolution of 2500 pulses per revolution
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring precise position feedback
- Conveyor systems and motor feedback applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient motor control reducing energy consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847TDL1ARH02500 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
