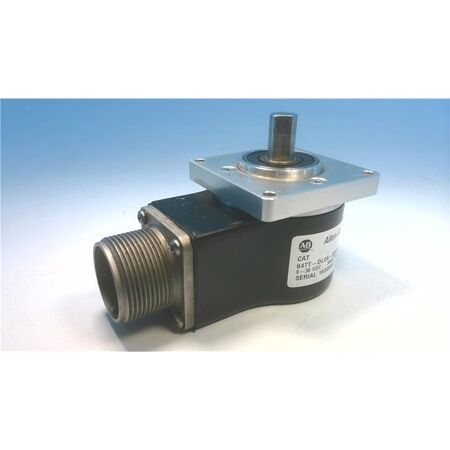

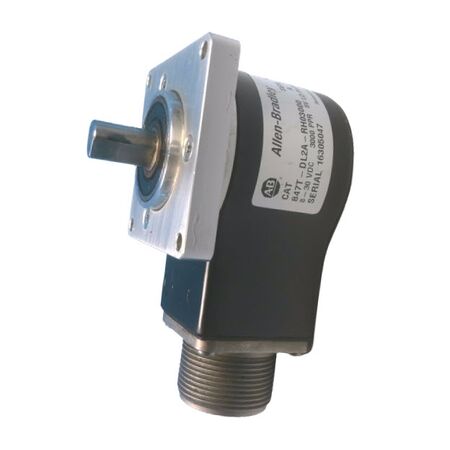

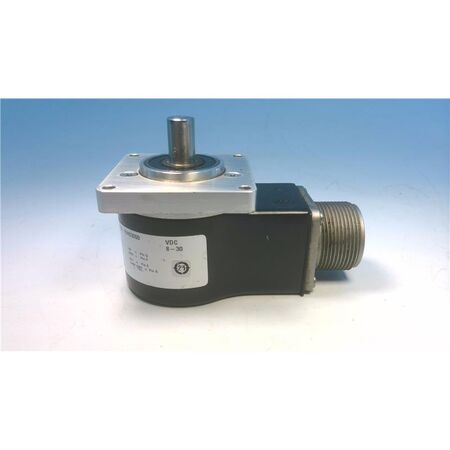

Incremental Encoder 2 Inch Diameter | 3000 Pulses/Rev | TTL Output | by Allen-Bradley
The Incremental Encoder 2 Inch Diameter from Allen-Bradley delivers precise position feedback with a pulse rate of 3000 pulses per revolution. Designed for industrial automation, robotics, and conveyor systems, it features a standard square flange for easy mounting and operates within a voltage range of 8-30 V DC. Ideal for applications requiring accurate motor control, this encoder ensures efficient performance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 10 mm with flat
- Output Type: 4.5-5.5 V TTL line driver
- Operating Voltage: 8-30 V DC
- Pulse Rate: 3000 pulses per revolution
- Connector: MS 10 pin without mating connector
- Rotation Direction: Clockwise (B leads A)
- Flange Type: Standard square flange
- Exit Type: Radial
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 inch diameter solid shaft
- Standard square flange mounting
- 10 mm diameter shaft with flat
- Radial exit with MS 10 pin connector (without mating connector)
- 3000 pulses per revolution (PPR)
- B leads A, clockwise rotation
- Z gated with BN output
- 4.5 to 5.5 V line driver (TTL) output
- 8 to 30 V DC operating voltage
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring precise position feedback
- Conveyor systems and motor feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by enabling precise motor control and reducing waste.
- Durable design reduces replacement frequency and electronic waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847TDL2ARH03000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
