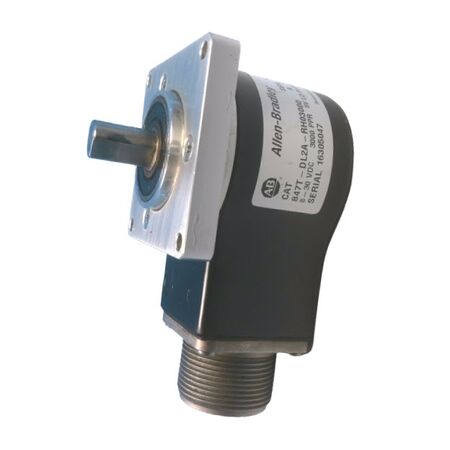

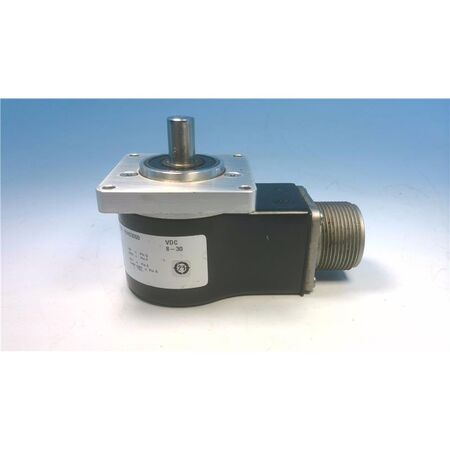

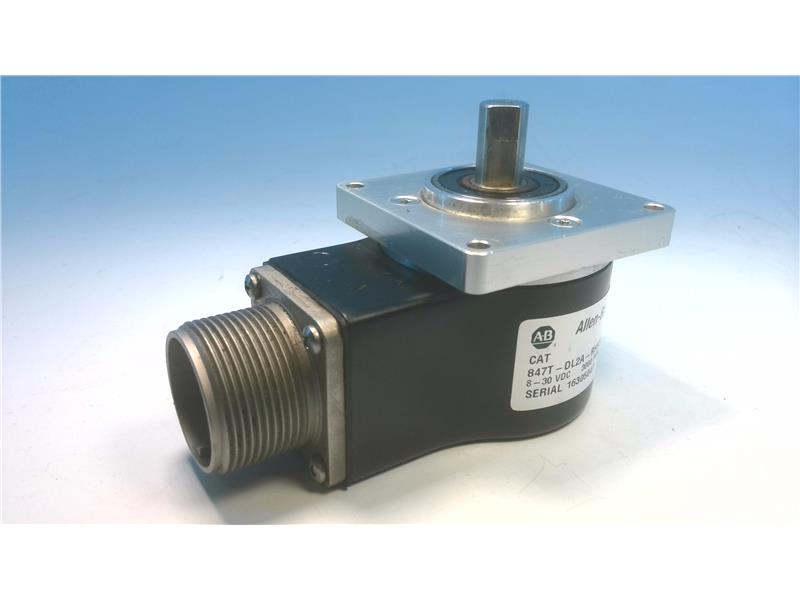

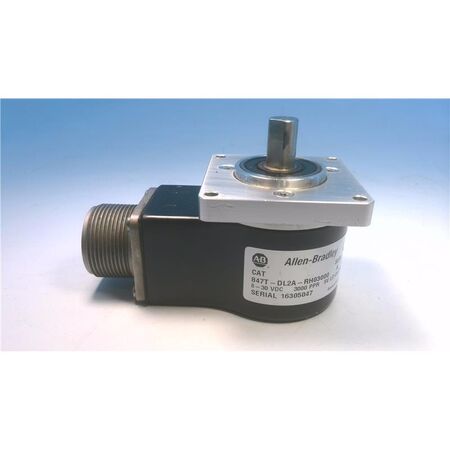

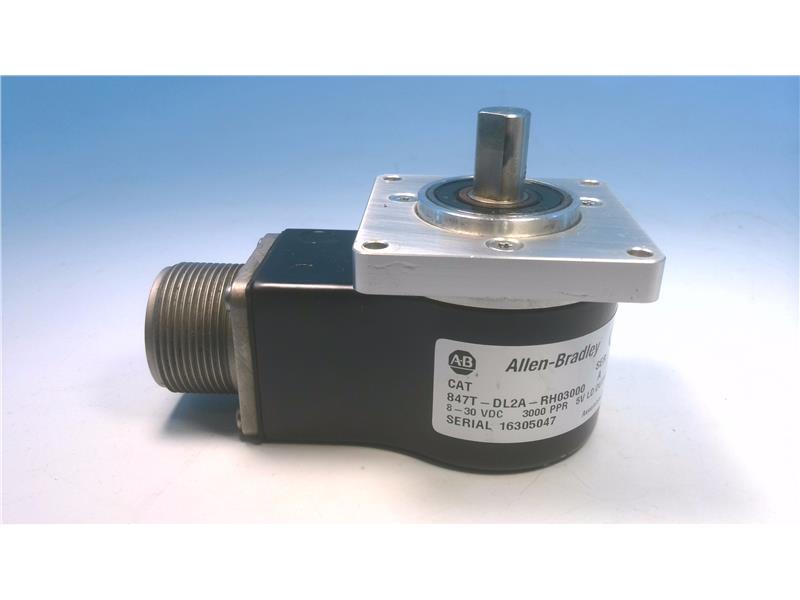

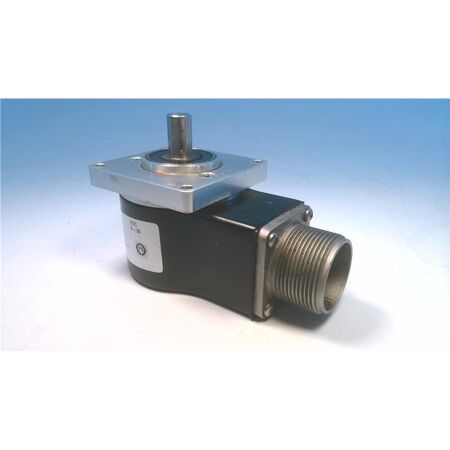

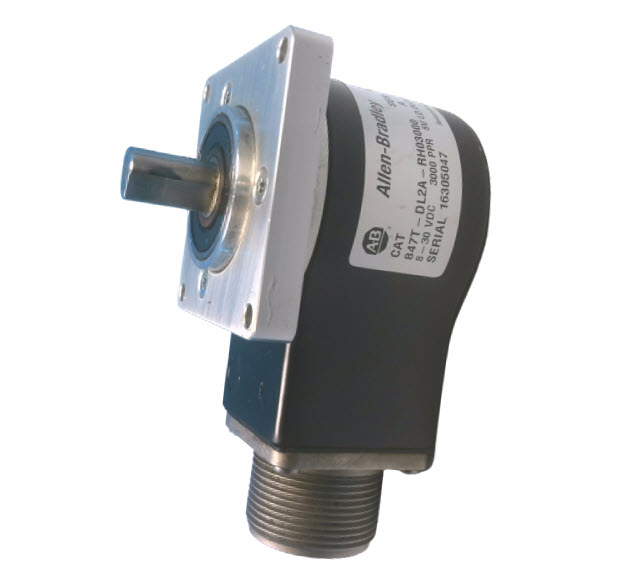

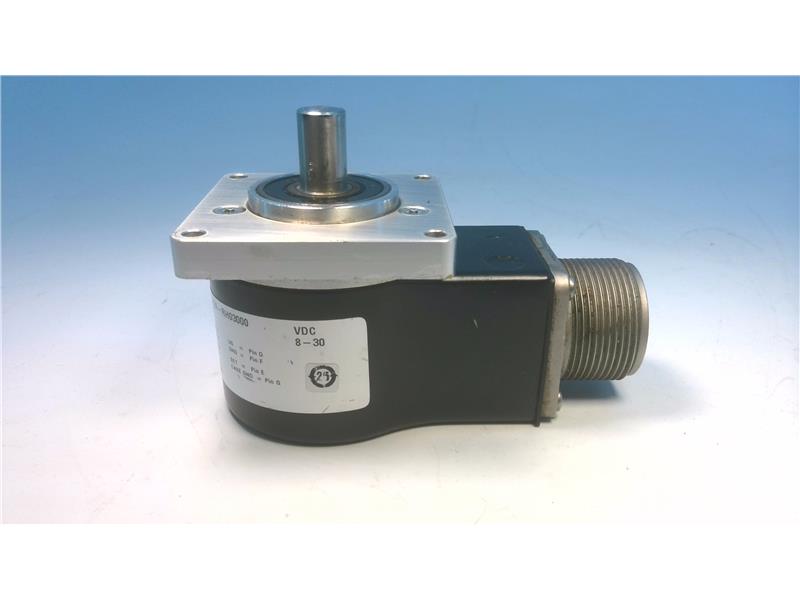

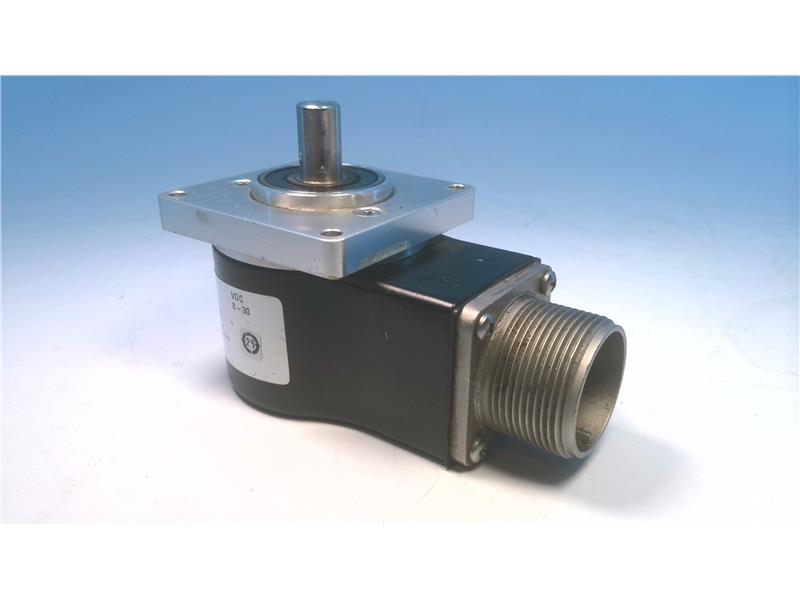

Incremental Encoder 2 Inch Diameter | 3000 Pulses/Rev | TTL Output | by Allen-Bradley

SKU: 847TDL2ARH03000
$1,698.10 List price: $2,116.10
+
Incremental Encoder 2 Inch Diameter | 3000 Pulses/Rev | TTL Output | by Allen-Bradley

Product Name/Title: Allen-Bradley 847TDL2ARH03000 Incremental Encoder 2 Inch Diameter

Brand: Allen-Bradley

SKU: 847TDL2ARH03000

Alternatively Known As: Incremental rotary encoder, 2 inch shaft encoder, Allen-Bradley rotary encoder, 847TDL encoder

Technical Specifications
  • Shaft Diameter: 10 mm with flat
  • Output Type: 4.5-5.5 V TTL line driver
  • Operating Voltage: 8-30 V DC
  • Pulse Rate: 3000 pulses per revolution
  • Connector: MS 10 pin without mating connector
  • Rotation Direction: Clockwise (B leads A)
  • Flange Type: Standard square flange
  • Exit Type: Radial
  • Dimensions (H x L x W): 50mm x 80mm x 50mm
  • Weight: 0.5 kg
Key Features
  • 2 inch diameter solid shaft
  • Standard square flange mounting
  • 10 mm diameter shaft with flat
  • Radial exit with MS 10 pin connector (without mating connector)
  • 3000 pulses per revolution (PPR)
  • B leads A, clockwise rotation
  • Z gated with BN output
  • 4.5 to 5.5 V line driver (TTL) output
  • 8 to 30 V DC operating voltage
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
  • Industrial automation and control systems
  • Robotics and machinery requiring precise position feedback
  • Conveyor systems and motor feedback
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Improves energy efficiency by enabling precise motor control and reducing waste.
  • Durable design reduces replacement frequency and electronic waste.
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 847TDL2ARH03000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
