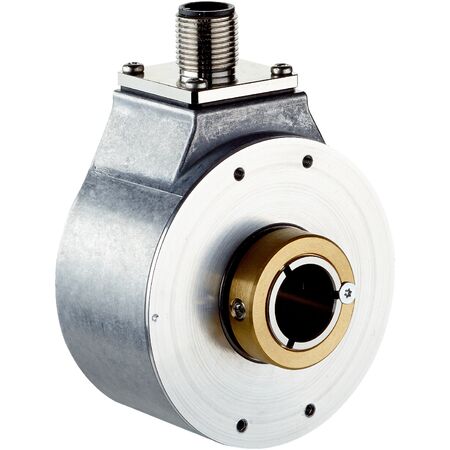

Incremental Encoder DBS60E-BDFCA0020 | 20 Pulses/Rev | 6-Channel TTL/HTL | IP67 Rated | by SICK
The Incremental Encoder DBS60E-BDFCA0020 features 20 pulses per revolution and a robust 6-channel output with TTL/HTL communication, making it ideal for industrial automation and robotics. With an IP67-rated aluminum housing and a stainless steel blind hollow shaft, it ensures durability and high performance in demanding environments, operating at speeds up to 9,000 min⁻¹.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BDFCA0020 | 20 Pulses/Rev | 6-Channel TTL/HTL | IP67 Rated | by SICK
Brand: SICK
SKU: 1134435
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 20
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 10 mm front clamp
- Flange type: Without stator coupling, flange with 4 x M2.5
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: > 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 20 pulses per revolution
- 6-channel output with TTL / HTL communication interface
- Robust aluminum housing with IP67 rating on housing side and IP65 on shaft side
- Blind hollow shaft design with 10 mm stainless steel shaft
- High operating speed up to 9,000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- Operating temperature range from –30 °C to +100 °C
- High resistance to shocks (250 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BDFCA0020 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
