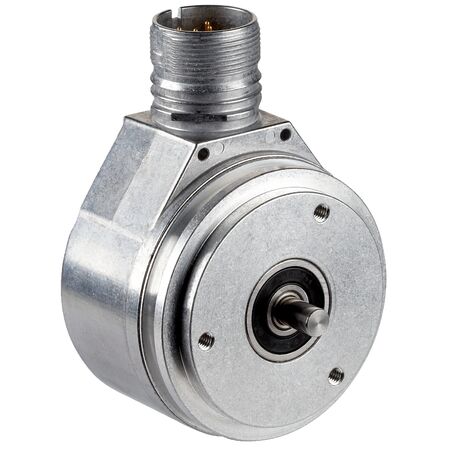

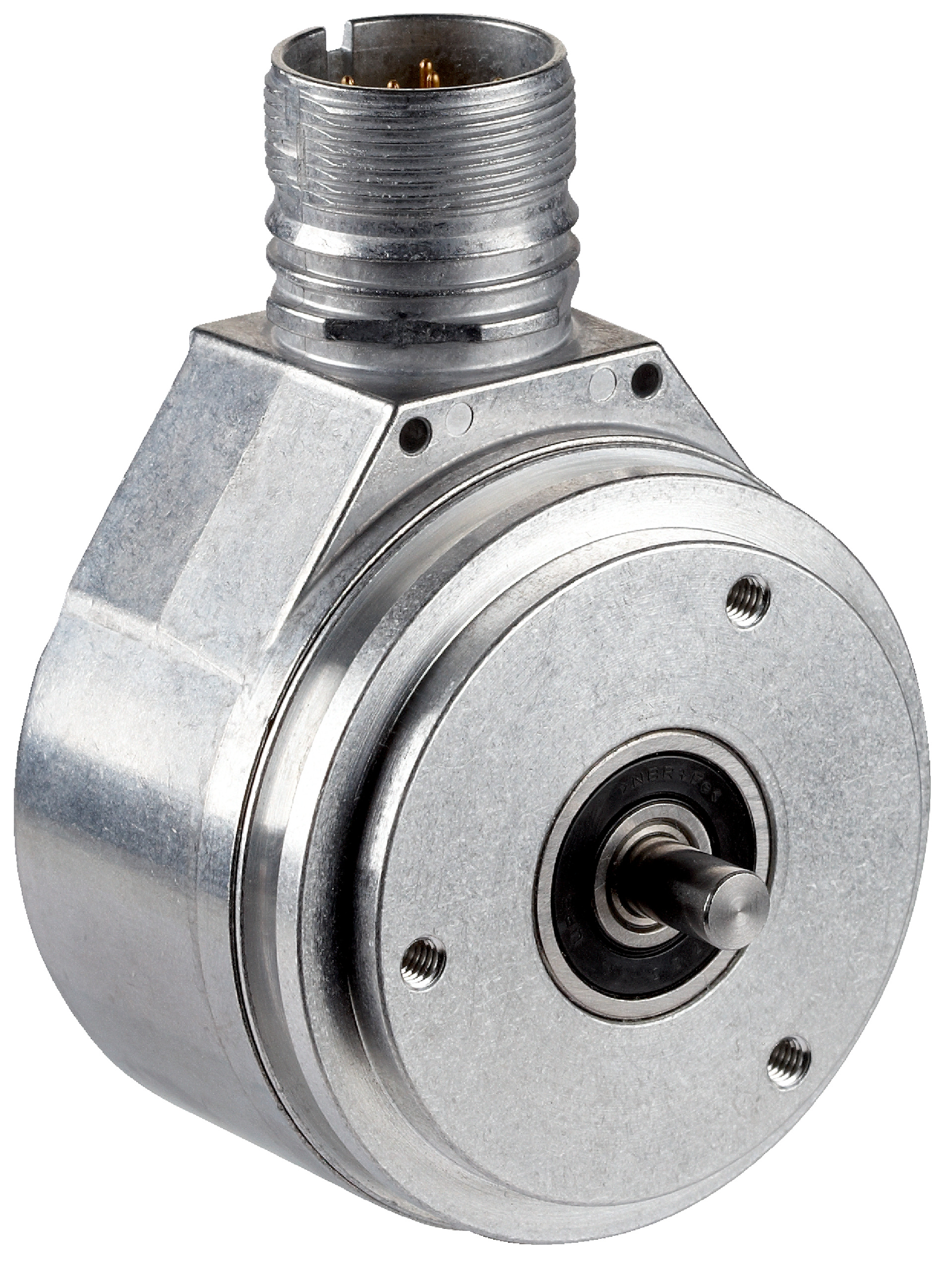

Incremental Encoder DFS60E-S1VA02000 | 2000 PPR | IP67 Rated | Solid Shaft | by SICK
The Incremental Encoder DFS60E-S1VA02000 features a high resolution of 2000 pulses per revolution, making it ideal for precise motion control in industrial automation. With a robust aluminum die cast housing rated IP67, it withstands harsh environments while providing reliable performance. Perfect for robotics, conveyor systems, and speed measurement applications, this encoder ensures durability and efficiency in demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60E-S1VA02000 | 2000 PPR | IP67 Rated | Solid Shaft | by SICK
Brand: SICK
SKU: 1059788
Alternatively Known As: Incremental rotary encoder, rotary encoder 6mm shaft, SICK encoder DFS60E, 2000 PPR encoder
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.2°
- Error limits: ±0.3°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- 0-set function via hardware pin: Yes, H-active
- Initialization time: 30 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: 0°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Solid shaft with 6 mm diameter and flat
- Robust aluminum die cast housing with IP67 rating
- 6-channel incremental TTL/RS-422 output
- Low start-up torque of 0.5 Ncm
- Operating temperature range from 0°C to +85°C
- High shock and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Conveyor and material handling systems
- Position and speed measurement in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 0.7 W improves energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DFS60E-S1VA02000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
