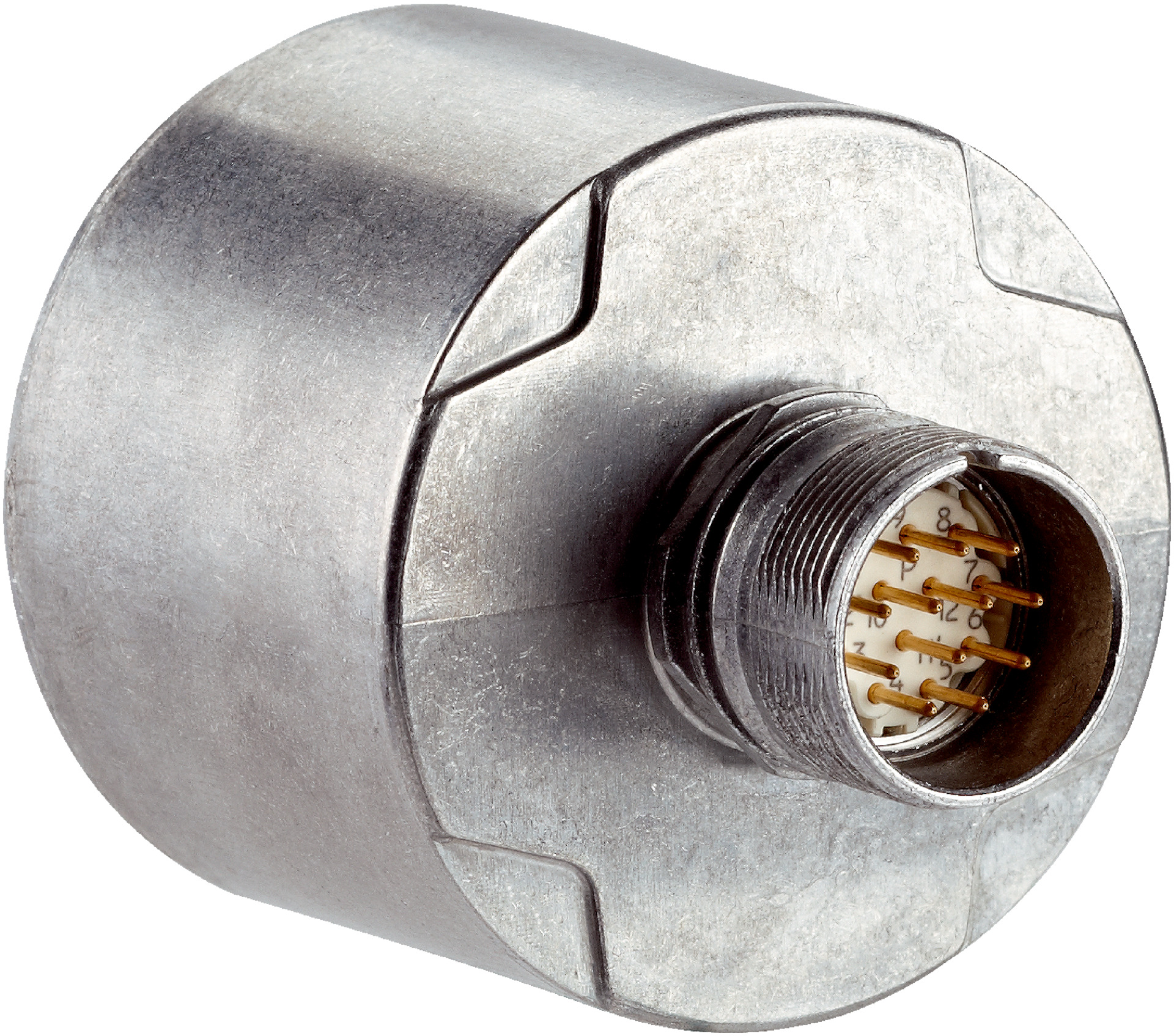

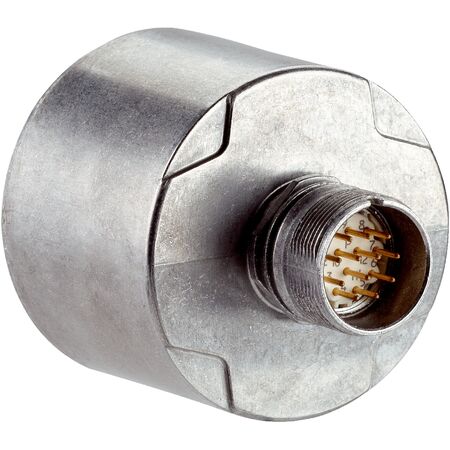

Incremental Encoder DFS60B-S1UB02000 | 2000 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60B-S1UB02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and robotics. Its robust solid shaft design and IP67 rating ensure durability in harsh environments, while the fast initialization time of 30 ms enhances performance in dynamic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S1UB02000 | 2000 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1058908
Alternatively Known As: Rotary encoder, incremental rotary encoder, shaft encoder, position encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- 0-set function via hardware pin: H-active
- Initialization time: 30 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M23, 12-pin, axial
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP67 rated housing side and IP65 shaft side for harsh environments
- Fast initialization time of 30 ms
- 6-channel incremental TTL/RS-422 communication interface
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -40°C to +100°C
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low operating current of 40 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60B-S1UB02000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
