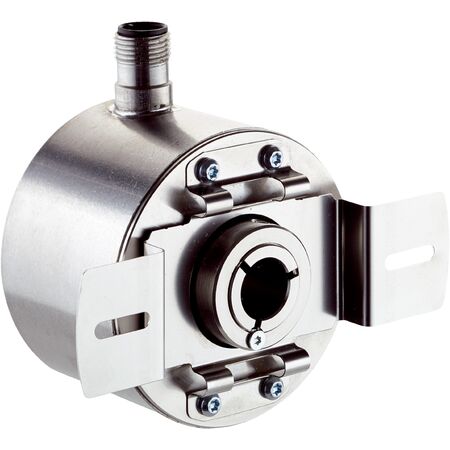

Incremental Encoder DBS60I-BBAC02000 | 2000 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DBS60I-BBAC02000 delivers high precision with 2000 pulses per revolution, making it ideal for industrial automation and robotics. Its robust stainless steel housing ensures durability, while the IP67 rating provides protection against dust and water. With a fast initialization time of under 5 ms, this encoder is perfect for motion control systems and conveyor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60I-BBAC02000 | 2000 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1131141
Alternatively Known As: Incremental rotary encoder, incremental shaft encoder, industrial encoder, position encoder, motion encoder
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: Male M12 8-pin radial connector
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Blind hollow shaft with 8 mm diameter
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Shaft sealing ring material: FKM80
- Start up torque: 2.1 Ncm at +20°C
- Operating torque: 2 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 52 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.44 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Robust stainless steel V2A housing and shaft
- Blind hollow shaft design with 8 mm diameter
- IP67 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection
- Fast initialization time under 5 ms
- Operating temperature range from -20°C to +85°C
- High resistance to shock (100 g) and vibration (10 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- High efficiency and reliability reduce downtime and energy consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60I-BBAC02000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
