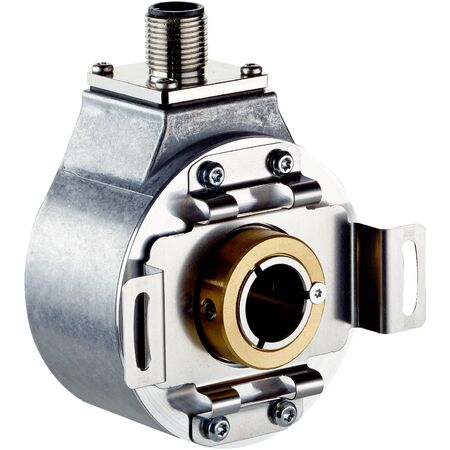

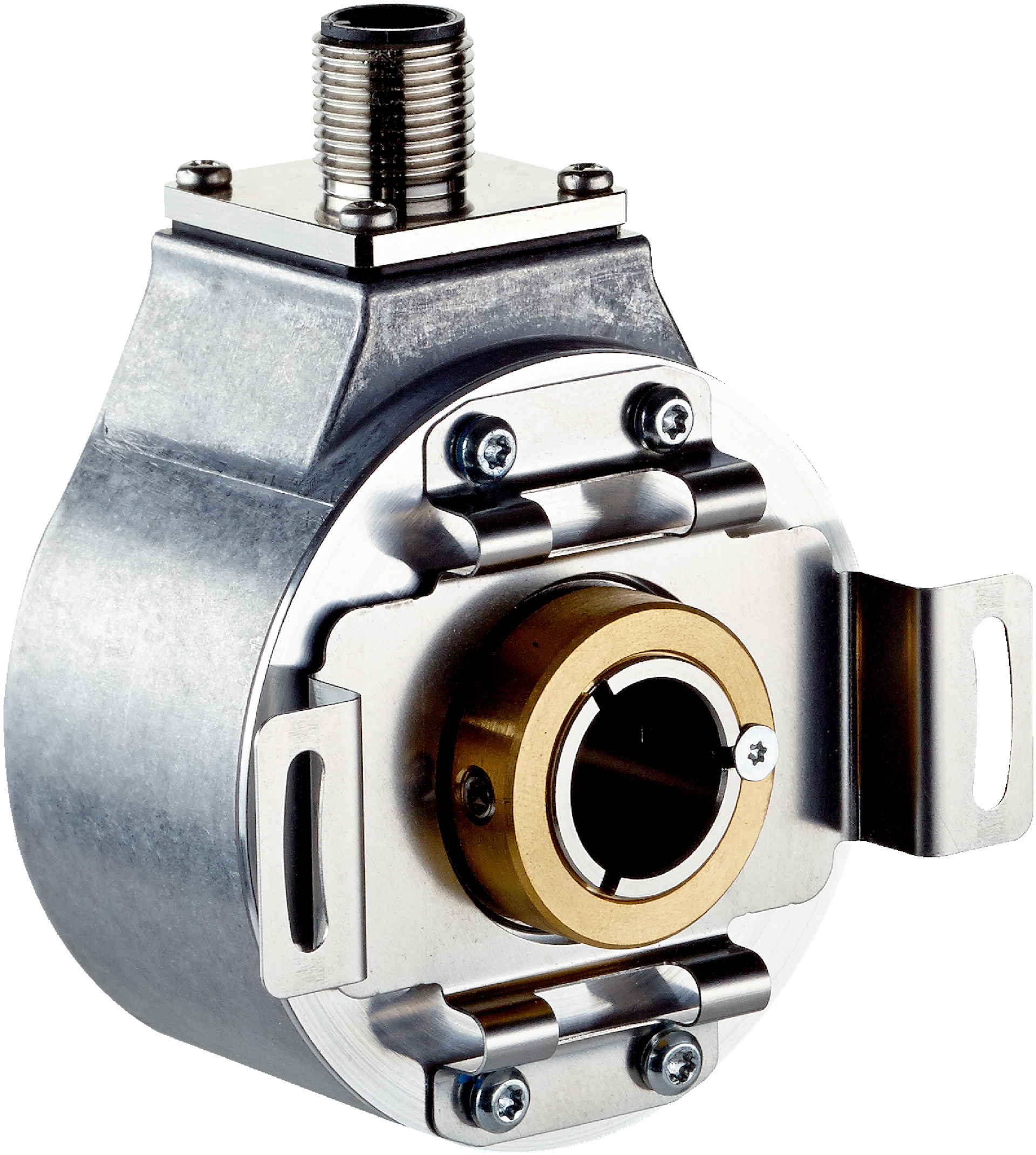

Incremental Encoder DBS60E-THCCB2048 | 2048 Pulses/Rev | IP65 Rated | High Speed | by SICK
The Incremental Encoder DBS60E-THCCB2048 delivers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Its robust aluminum housing and stainless steel shaft ensure durability, while the IP65 rating provides protection against dust and water. With a fast initialization time of less than 5 ms and a wide operating temperature range from -30 °C to +100 °C, this encoder is perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-THCCB2048 | 2048 Pulses/Rev | IP65 Rated | High Speed | by SICK
Brand: SICK
SKU: 1104641
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK encoder DBS60E
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 15 mm (front clamp)
- Flange type: Stator coupling, 2-sided, screw hole circle 63 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30 °C to +100 °C (max 3,000 pulses per revolution)
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 80mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Through hollow shaft mechanical design with 15 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Fast initialization time of less than 5 ms
- Supports TTL / RS-422 incremental communication interface
- Reverse polarity and short-circuit protection
- High operating speed up to 6,000 min⁻¹ with max speed 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
- Wide operating temperature range from -30 °C to +100 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and material handling
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.5 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-THCCB2048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
