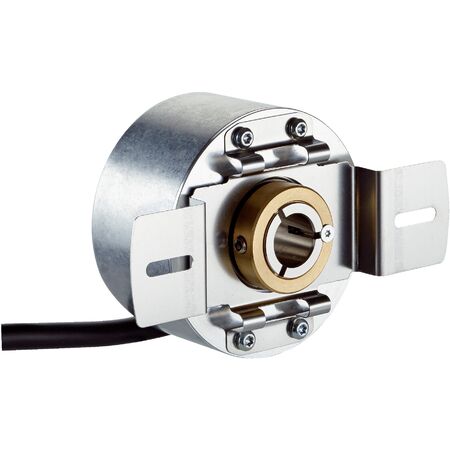

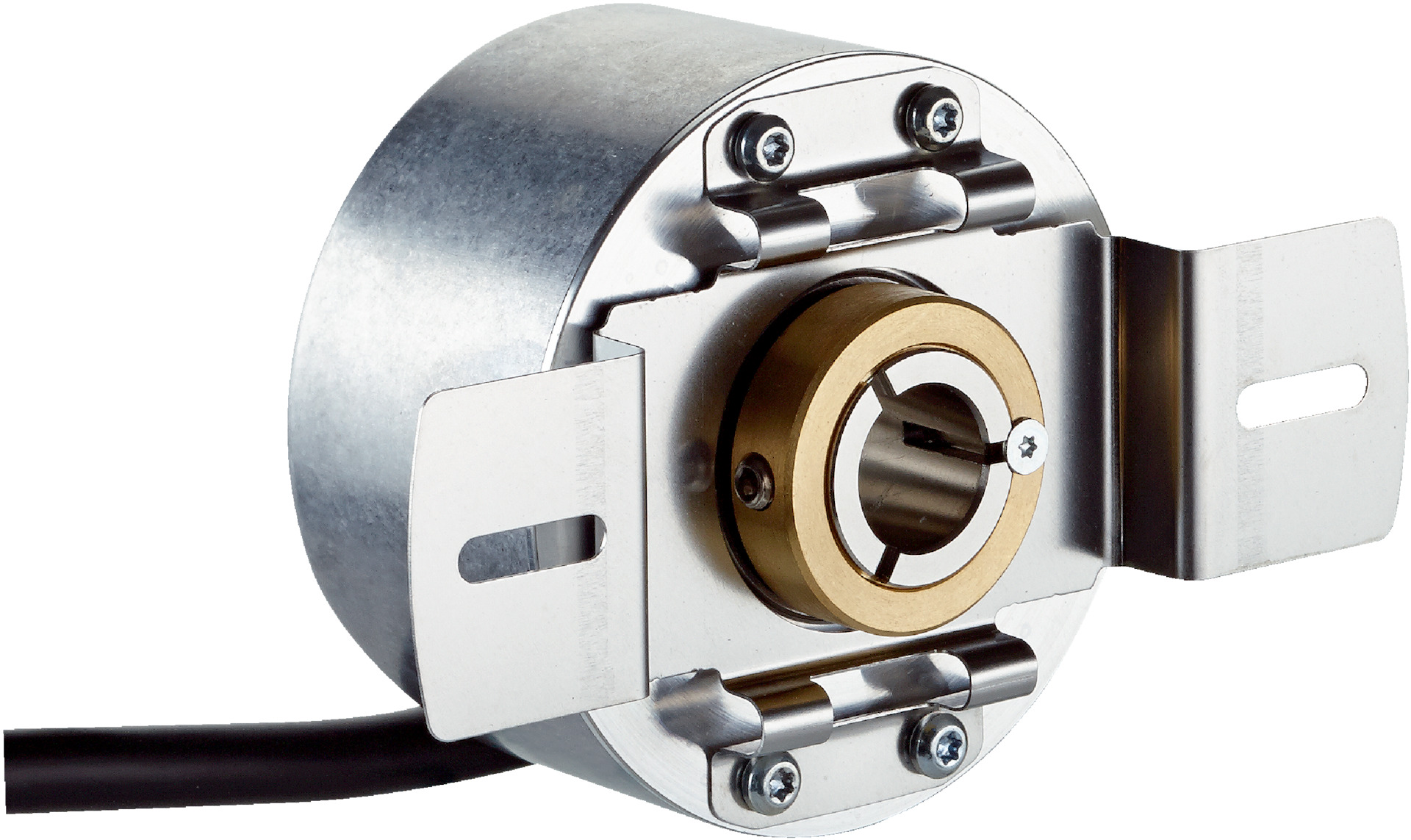

Incremental Encoder DBS60E-BJAK02048 | 2048 Pulses/Rev | IP67 Rated | High Speed Up to 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-BJAK02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Designed for harsh environments, it features an IP67 rated housing and robust stainless steel shaft. With a high operating speed of up to 9000 min⁻¹ and a long bearing lifetime, this encoder ensures reliable performance in motion control systems and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BJAK02048 | 2048 Pulses/Rev | IP67 Rated | High Speed Up to 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1069367
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2048
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: 8-wire cable, 1.5 m length
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Mechanical design: Blind hollow shaft with 5/8” front clamp shaft diameter
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Start-up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹ typical, max 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 50mm x 83mm
- Weight: 0.25 kg
Key Features
- High resolution with 2048 pulses per revolution
- Robust blind hollow shaft mechanical design with stainless steel shaft
- IP67 rated housing side and IP65 shaft side for harsh environments
- TTL / RS-422 incremental communication interface with 6 signal channels
- Short-circuit and reverse polarity protection
- High operating speed up to 9000 min⁻¹
- Low start-up and operating torque for minimal mechanical load
- Long bearing lifetime and high resistance to shock and vibration
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper mechanical and electrical integration and to maintain compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BJAK02048 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
