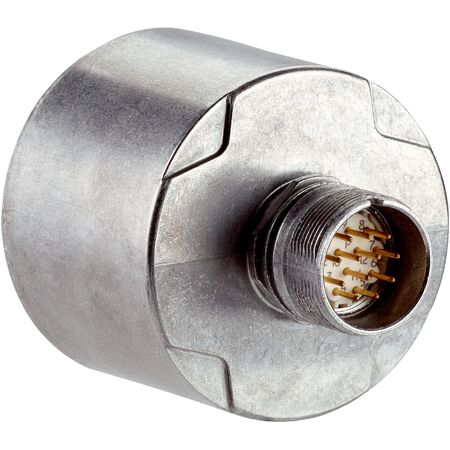

Incremental Encoder DFS60E-S4AB02048 | 2048 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60E-S4AB02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Built with a robust aluminum die cast housing and IP67 rating, it withstands harsh environments while providing reliable position and speed measurement. Perfect for machine tool feedback systems and conveyor applications, this encoder ensures optimal performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60E-S4AB02048 | 2048 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1059137
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2048
- Measuring step deviation: ±0.15°
- Error limits: ±0.3°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M23, 12-pin, axial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 2048 pulses per revolution
- Solid shaft with 10 mm diameter and flat
- Robust aluminum die cast housing and flange
- IP67 rated housing side and IP65 shaft side for harsh environments
- Short-circuit protected outputs
- Operating speed up to 9,000 min⁻¹
- Low start-up torque of 0.5 Ncm
- TTL / RS-422 incremental communication interface with 6 signal channels
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and packaging machinery
- Machine tool feedback systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60E-S4AB02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
