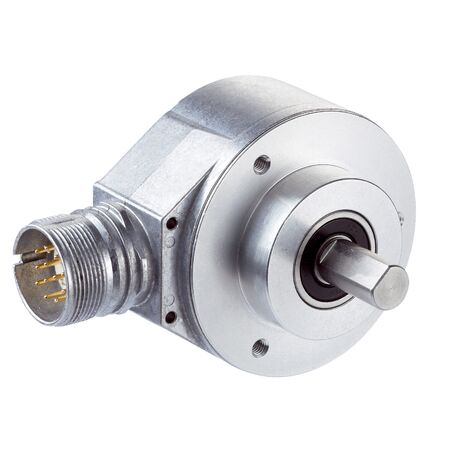

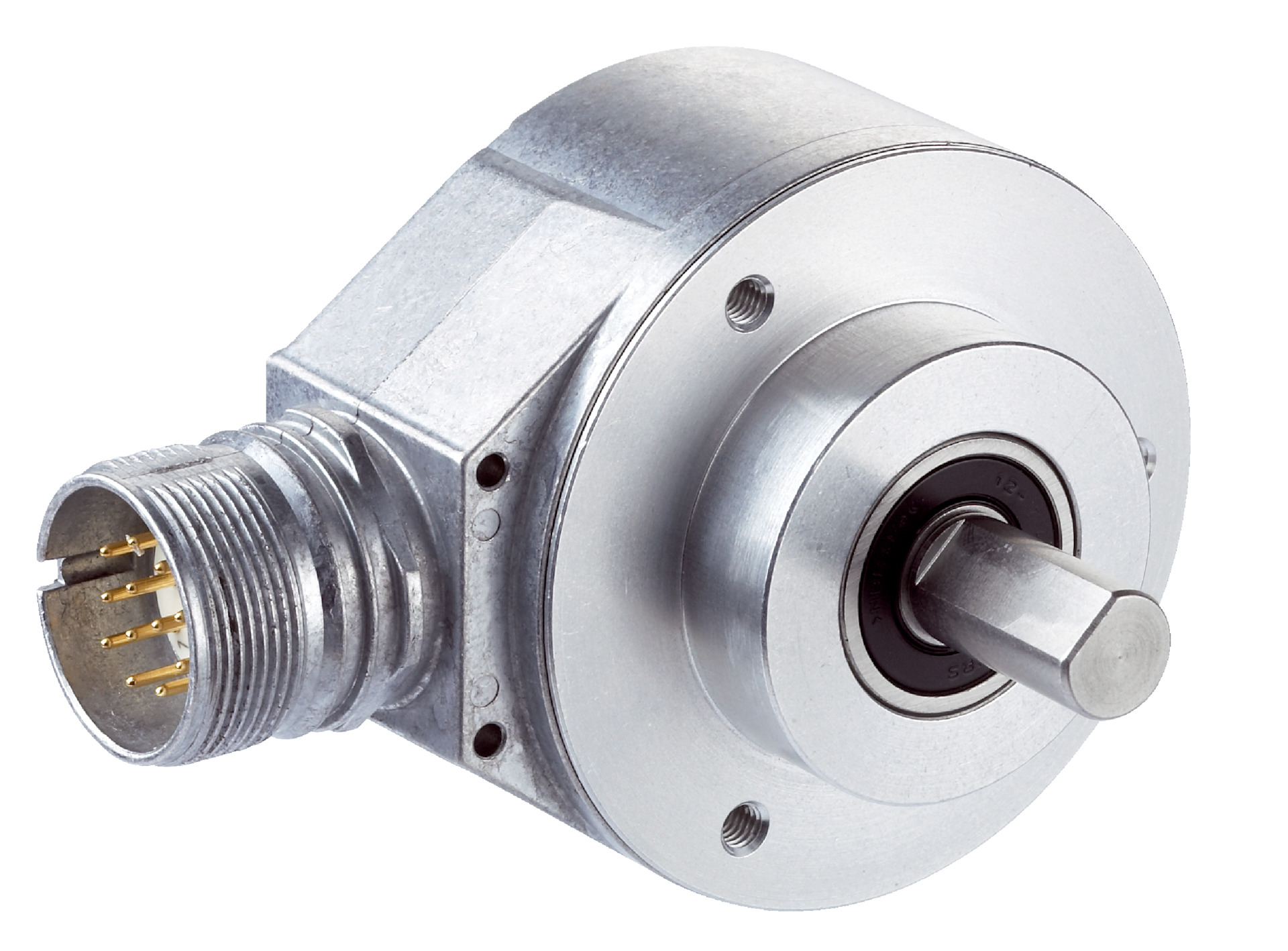

Incremental Encoder DFS60A-S4VA02048 | 2048 Pulses/Rev | IP67 Rated | TTL/RS-422 Interface | by SICK
The Incremental Encoder DFS60A-S4VA02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Its robust design features a stainless steel shaft and aluminum housing, ensuring durability in demanding environments. With an IP67 rating for dust and water protection, this encoder is perfect for applications requiring reliable position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60A-S4VA02048 | 2048 Pulses/Rev | IP67 Rated | TTL/RS-422 Interface | by SICK
Brand: SICK
SKU: 1065703
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2048
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start-up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40°C to +100°C
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 2048 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP67 rated housing for protection against dust and water
- TTL / RS-422 incremental communication interface with 6 signal channels
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -40°C to +100°C
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.7 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60A-S4VA02048 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
