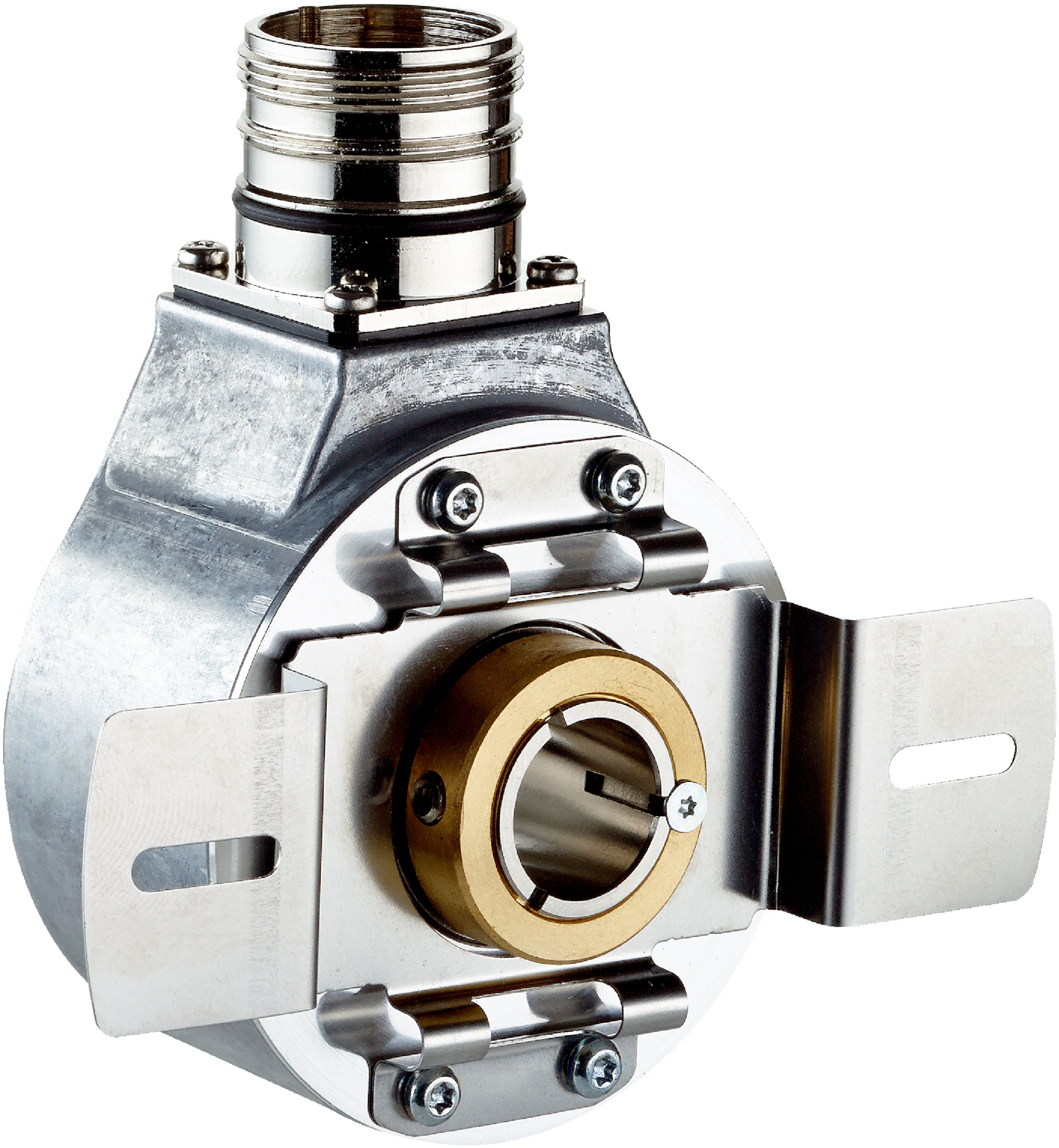

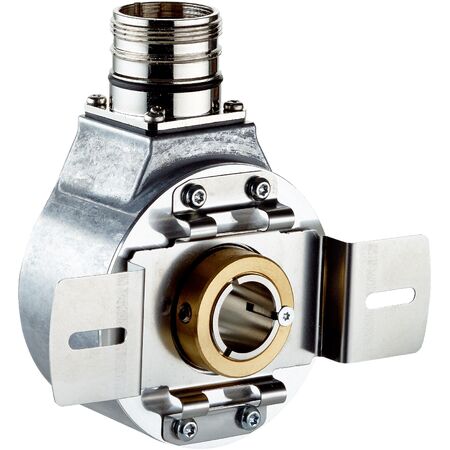

Incremental Encoder DBS60E-TJEA02048 | 2048 PPR | IP65 Rated | High Speed up to 9000 RPM | by SICK
The Incremental Encoder DBS60E-TJEA02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Designed for reliable performance, it features a robust aluminum housing, IP65 rating for dust and water protection, and a fast initialization time of under 5 ms. Perfect for applications requiring accurate position and speed measurement, this encoder ensures durability and efficiency in motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-TJEA02048 | 2048 PPR | IP65 Rated | High Speed up to 9000 RPM | by SICK
Brand: SICK
SKU: 1071902
Alternatively Known As: Incremental rotary encoder, rotary encoder 2048 PPR, SICK incremental encoder, hollow shaft encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft with 5/8″ front clamp
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Start-up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: –20 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 83mm x 60mm x 83mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Through hollow shaft mechanical design with 5/8″ front clamp
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low start-up torque of 0.5 Ncm
- 6-channel incremental HTL / Push pull communication interface
- Fast initialization time under 5 ms
- Operating temperature range from –20 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring high-resolution feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TJEA02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
