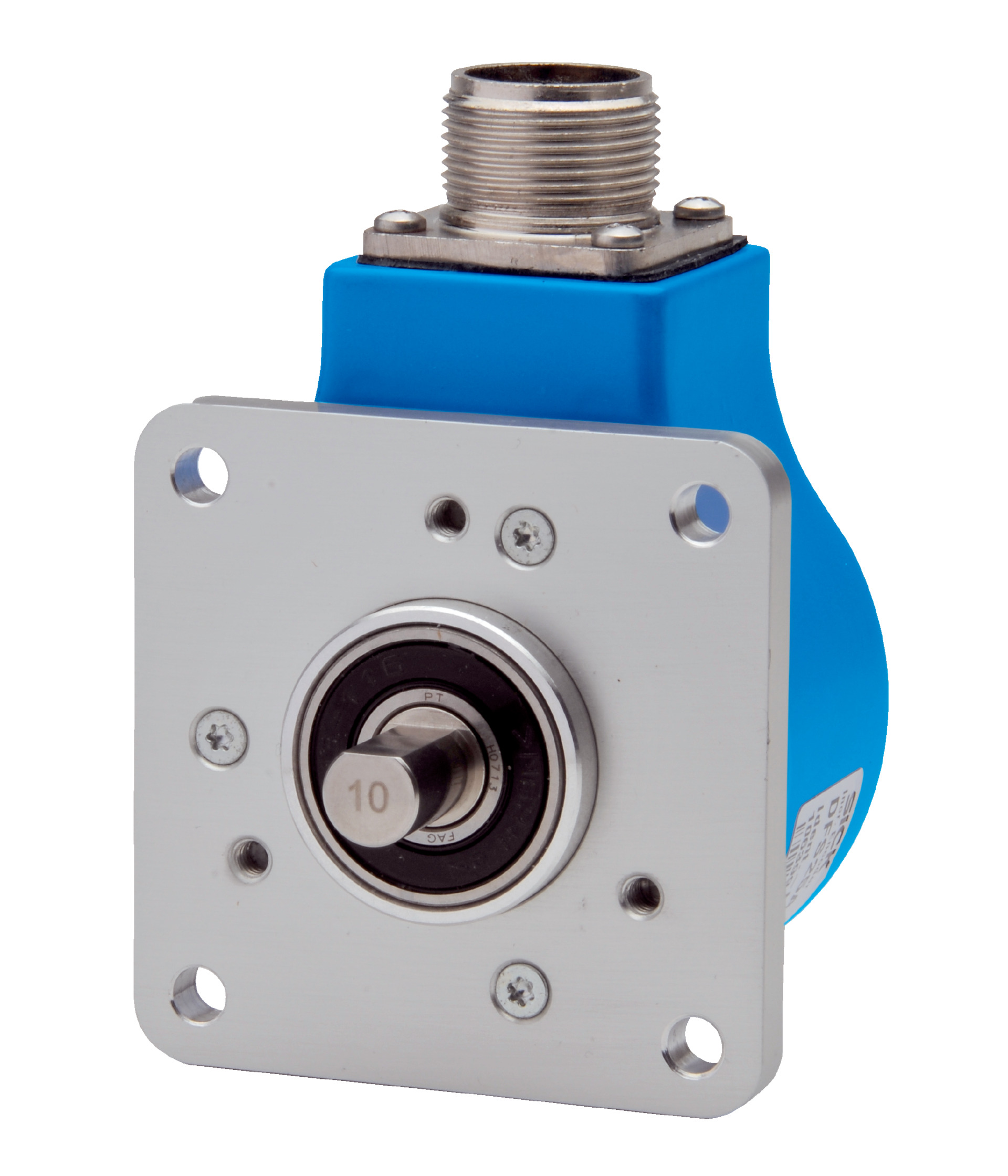

Incremental Encoder DFS25A-A4C1E002048 | 2048 PPR | IP65/IP67 Rated | Solid Shaft Design | by SICK
The Incremental Encoder DFS25A-A4C1E002048 features a high resolution of 2,048 pulses per revolution, making it ideal for industrial automation and precision measurement applications. With robust solid shaft construction and IP65/IP67 ratings for protection against dust and water, this encoder ensures reliable performance in challenging environments. Designed for easy integration, it supports 6-channel incremental communication with TTL/RS-422 interfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS25A-A4C1E002048 | 2048 PPR | IP65/IP67 Rated | Solid Shaft Design | by SICK
Brand: SICK
SKU: 1082696
Alternatively Known As: Incremental rotary encoder, rotary encoder 2048 PPR, SICK encoder DFS25A, industrial encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Robust solid shaft with stainless steel material
- IP65 rated shaft side and IP67 rated housing side for protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- Low power consumption of 0.7 W without load
- Fast initialization time of 40 ms
- 6-channel incremental communication interface with TTL / RS-422
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Precision measurement and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS25A-A4C1E002048 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
