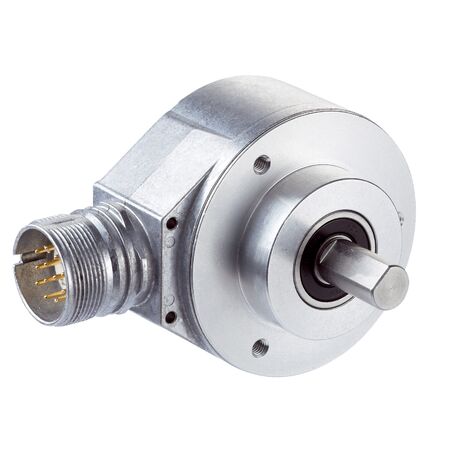

Incremental Encoder DFS60B-S4AA00300 | 300 Pulses/Rev | IP67 Rated | High Speed up to 9,000 min⁻¹ | by SICK
The Incremental Encoder DFS60B-S4AA00300 is designed for precise position and speed measurement in industrial automation. With 300 pulses per revolution and a high operating speed of up to 9,000 min⁻¹, this encoder features an IP67 rated housing for protection against dust and water. Ideal for robotics, conveyor systems, and machine tool feedback, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S4AA00300 | 300 Pulses/Rev | IP67 Rated | High Speed up to 9,000 min⁻¹ | by SICK
Brand: SICK
SKU: 1038909
Alternatively Known As: Incremental rotary encoder, shaft encoder, rotary position sensor, pulse encoder
Technical Specifications
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 300 pulses per revolution
- 6-channel TTL / RS-422 communication interface
- Solid shaft with 10 mm diameter and 19 mm length
- High operating speed up to 9,000 min⁻¹
- IP67 rated housing for protection against dust and water
- Short-circuit protected outputs
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- Stainless steel shaft and aluminum die cast housing
- High bearing lifetime of 3.6 x 10^10 revolutions
- Operating temperature range from -40 °C to +100 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and high bearing lifetime reduce waste and replacement frequency
- IP67 protection minimizes ingress of contaminants, extending product life
- Low power consumption with 40 mA operating current
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DFS60B-S4AA00300 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
