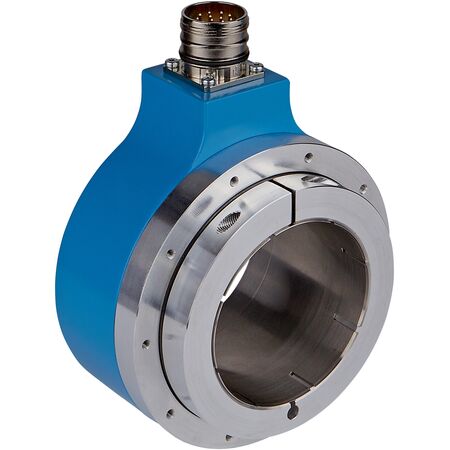

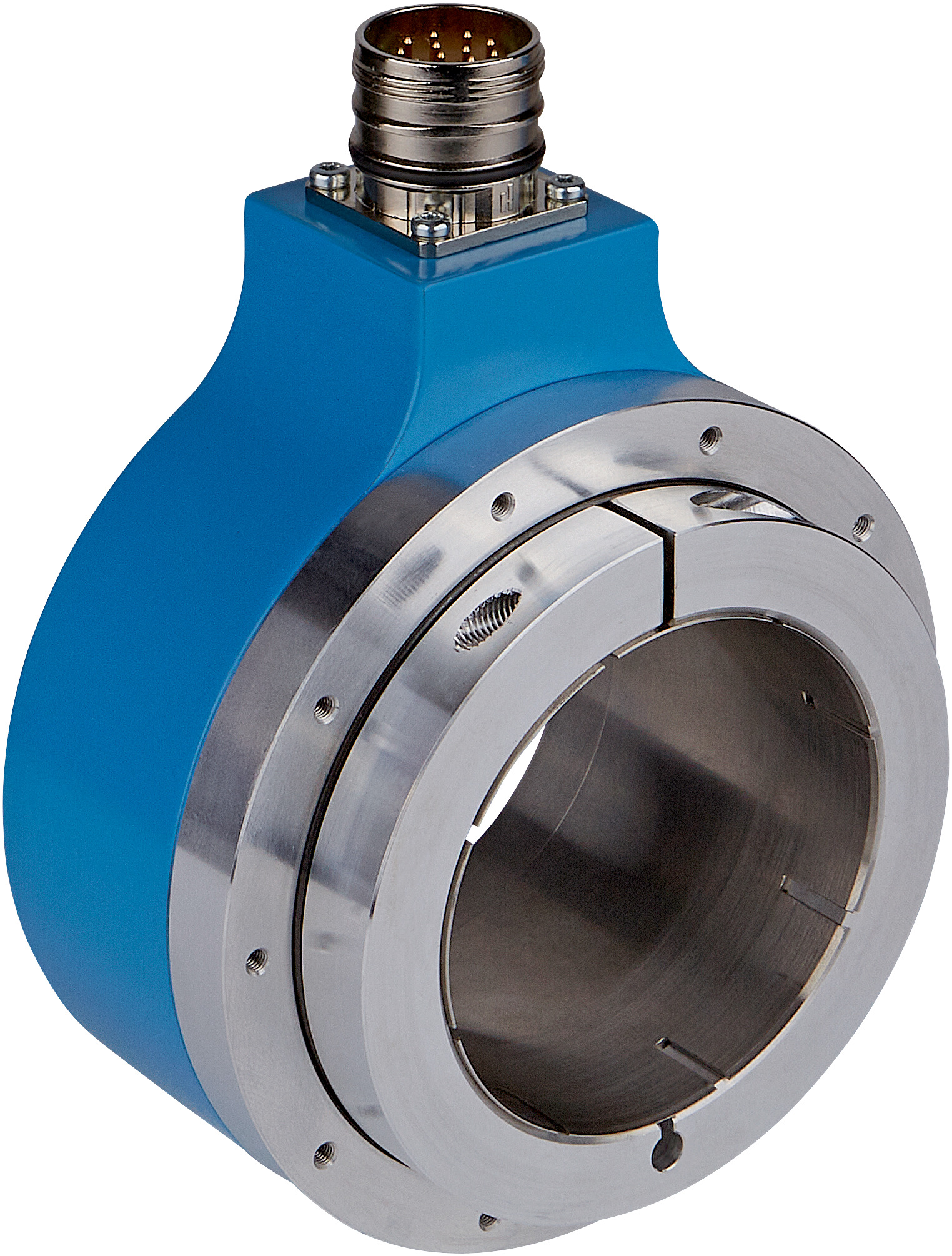

Incremental Encoder DGS90B-TWLA04096 | 4096 Pulses/Rev | IP65 Rated | Hollow Shaft Design | by SICK
The DGS90B-TWLA04096 incremental encoder delivers high precision with 4,096 pulses per revolution, making it ideal for industrial automation and robotics. Its robust IP65-rated housing ensures durability in harsh environments, while the through hollow shaft design allows for easy integration into various applications. With a fast initialization time of under 50 ms and low power consumption, this encoder is perfect for precise position and speed measurement in motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DGS90B-TWLA04096 | 4096 Pulses/Rev | IP65 Rated | Hollow Shaft Design | by SICK
Brand: SICK
SKU: 1146056
Alternatively Known As: Incremental rotary encoder, high resolution encoder, industrial position encoder, SICK rotary encoder
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: 90° electrical/pulses per revolution
- Measuring step deviation: ± 25° electrical
- Duty cycle: ≤ 0.5 ± 15 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 5 ... 30 V
- Mechanical design: Through hollow shaft
- Shaft diameter: 65 mm
- Flange type: 1-sided stator coupling (slot accessory available)
- Shaft material: Stainless steel UNI EN 4305
- Flange material: Aluminum
- Housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 40 Ncm (+20 °C)
- Operating torque: 35 Ncm (+20 °C)
- Permissible shaft loading: 200 N (radial), 120 N (axial)
- Operating speed: ≤ 2,000 min⁻¹
- Moment of inertia of the rotor: 2,640 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: According to EN 61000-4-2 and EN 61000-4-4
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: –25 °C to +85 °C
- Storage temperature range: –25 °C to +85 °C (without package)
- Resistance to shocks: 250 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 1.4 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Through hollow shaft mechanical design with 65 mm shaft diameter
- Robust housing with IP65 protection rating
- Operating temperature range from -25 °C to +85 °C
- Short-circuit and reverse polarity protection
- Low power consumption of ≤ 0.85 W
- Fast initialization time under 50 ms
- 6-channel incremental HTL / Push pull communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and material handling
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS90B-TWLA04096 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
