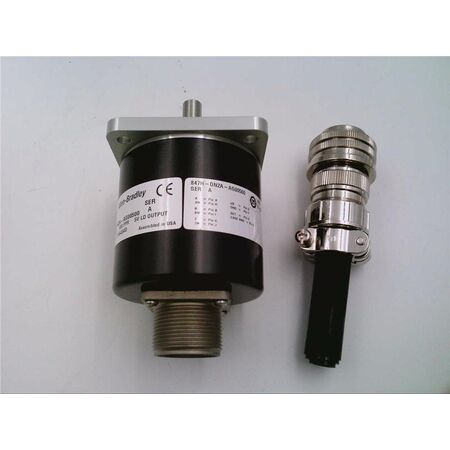

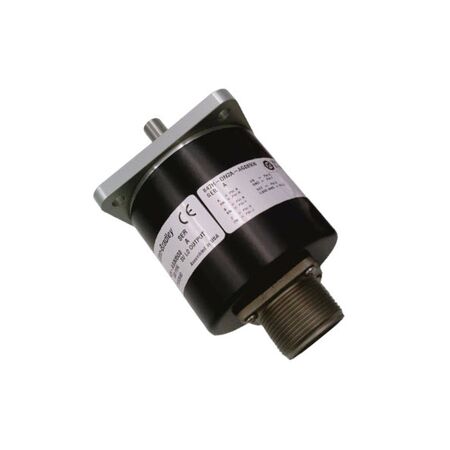

Incremental Encoder 500 PPR | 8-30 VDC Supply | Axial Exit | by Allen-Bradley
The Incremental Encoder 500 PPR is designed for precision in industrial automation, featuring an 8-30 VDC supply voltage and an axial exit with a 10-pin MS connector. Ideal for robotics, conveyor systems, and motion control, this encoder ensures reliable position feedback and low power consumption, making it a perfect choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 8-30 VDC
- Output Type: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin plus mate
- Pulse Rate: 500 pulses per revolution
- Exit Type: Axial
- Dimensions (H x L x W): 63mm x 100mm x 63mm
- Weight: 0.5 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange mounting
- 3/8 inch diameter shaft with flat
- 8-30 VDC supply voltage
- 4.5-5.5 VDC line driver output
- Axial exit with MS connector
- 10 pin plus mate connection
- 500 pulses per revolution (PPR)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Conveyor systems and motor control
- Precision measurement and motion control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 8-30 VDC supply
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN2AAG00500 Incremental Encoder is available now for immediate purchase. Ideal for industrial automation and precise motion control applications.
