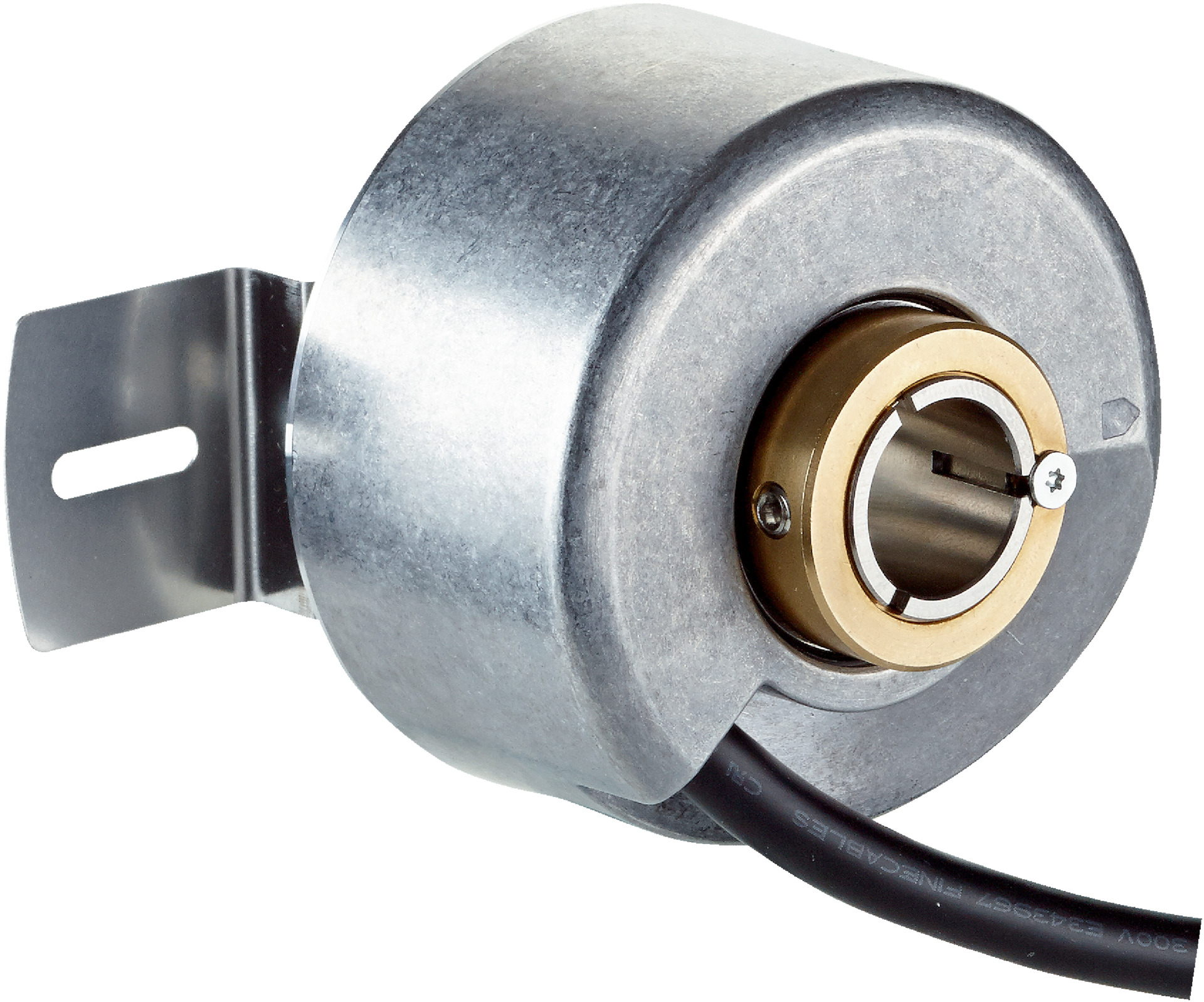

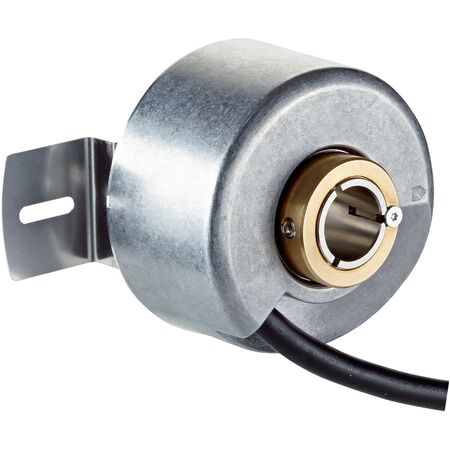

Incremental Encoder DBS60E-RHFK00500 | 500 Pulses/Rev | 6-Channel TTL/HTL | IP65 Rated | by SICK
The Incremental Encoder DBS60E-RHFK00500 delivers precise position and speed measurement with 500 pulses per revolution and a 6-channel TTL/HTL communication interface. Designed for industrial automation, robotics, and conveyor systems, it features a robust aluminum housing with IP65 protection, ensuring durability in harsh environments. With an operating temperature range of -30 °C to +100 °C, this encoder is built for high-performance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-RHFK00500 | 500 Pulses/Rev | 6-Channel TTL/HTL | IP65 Rated | by SICK
Brand: SICK
SKU: 1093854
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 500
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 15 mm rear clamping
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.4 Ncm at +20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- 500 pulses per revolution with measuring step ≤ 90°
- 6-channel incremental communication interface (TTL / HTL)
- Through hollow shaft mechanical design with 15 mm shaft diameter
- Robust aluminum housing and flange with IP65 protection
- Operating temperature range from –30 °C to +100 °C
- Reverse polarity and short-circuit protection on outputs
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and machinery requiring accurate rotational feedback
- Conveyor systems and motor control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 0.5 W reduces energy usage
- Durable materials and long bearing lifetime minimize replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DBS60E-RHFK00500 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
