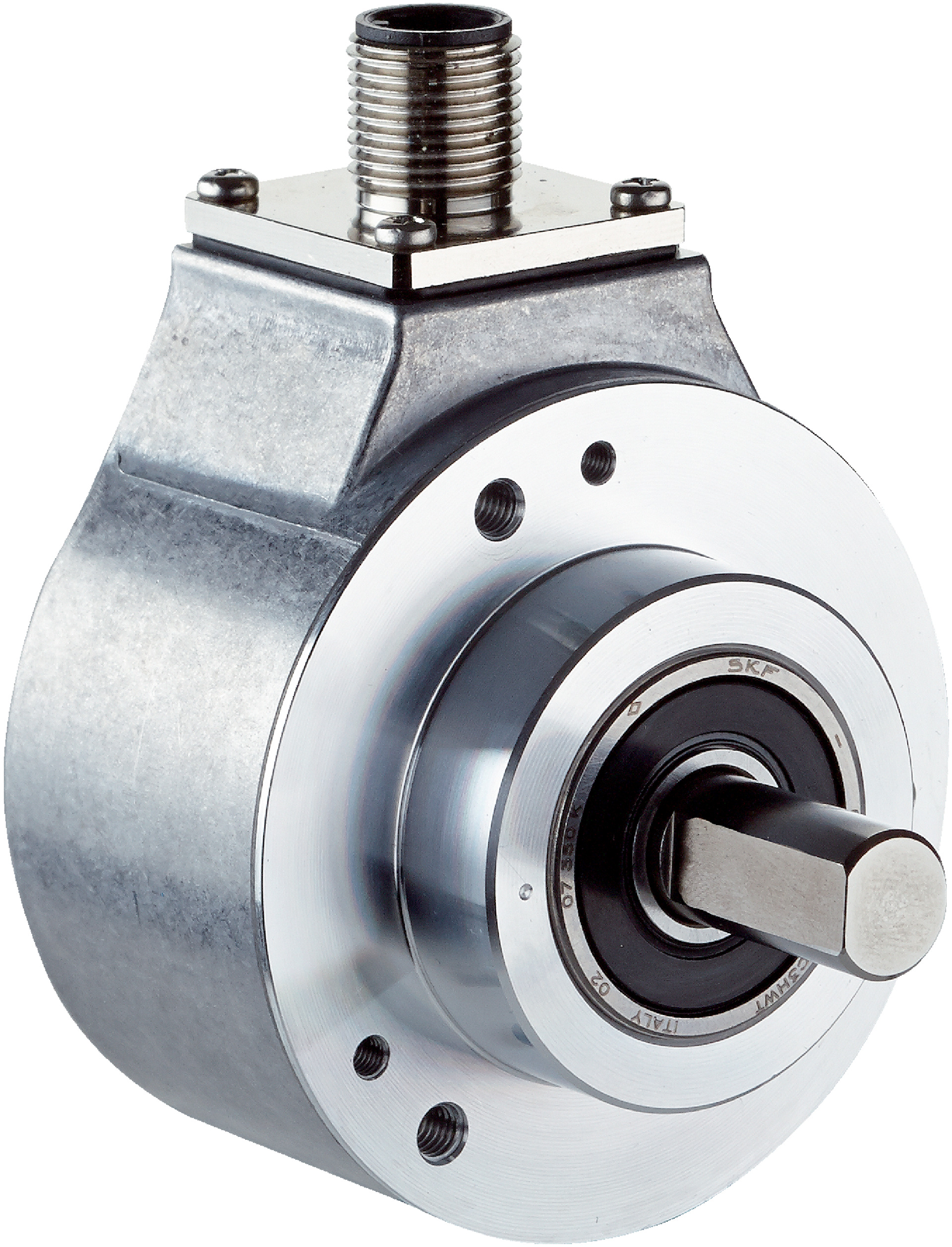

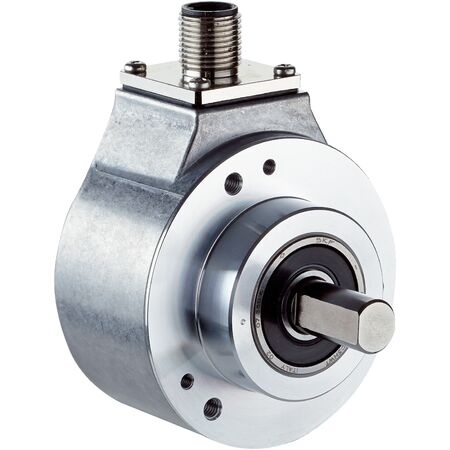

Incremental Encoder DBS60E-S4EC00S15 | 6-Channel Output | IP67 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-S4EC00S15 is designed for precise position and speed measurement in industrial automation. With a robust mechanical design, it features a solid stainless steel shaft and an IP67 rated housing, making it ideal for harsh environments. This encoder supports a 6-channel output with HTL / Push pull signals, ensuring reliable performance in robotics, conveyor systems, and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S4EC00S15 | 6-Channel Output | IP67 Rated | High Speed up to 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1074152
Alternatively Known As: Incremental rotary encoder, SICK DBS60E encoder, M12 incremental encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 10
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Supply voltage: 10 ... 27 V
- Reference signal position: 90°, logically gated with A and B
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Start up torque: 1.2 Ncm (+20 °C)
- Operating torque: 1.1 Ncm (+20 °C)
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: –20 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- M12 4-pin male connector with customized pin assignment
- Incremental communication interface with HTL / Push pull signals
- 6-channel output with reference signal logically gated with A and B
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- High operating speed up to 9,000 min⁻¹
- IP67 rated housing side and IP65 shaft side for harsh environments
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring incremental feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-S4EC00S15 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
