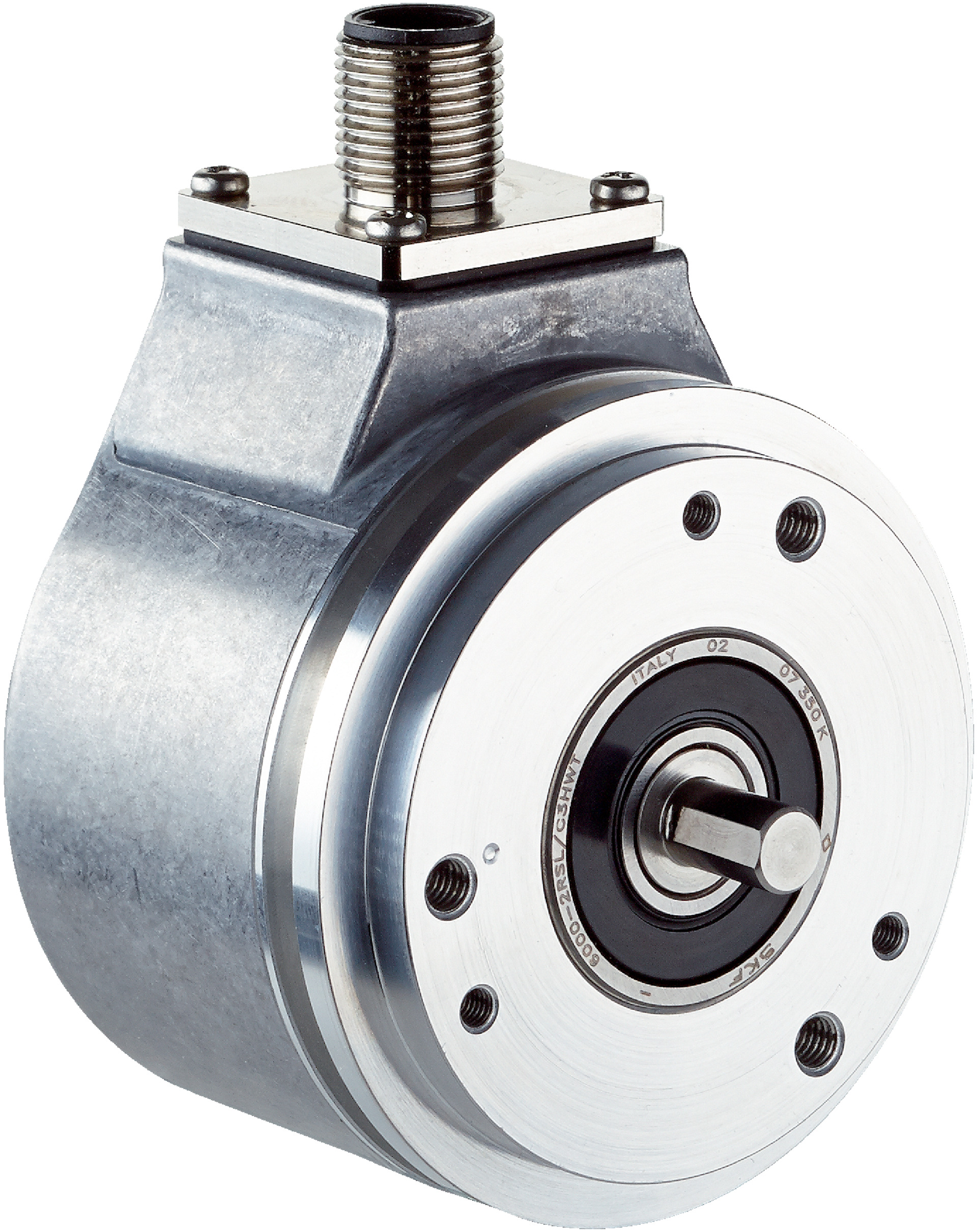

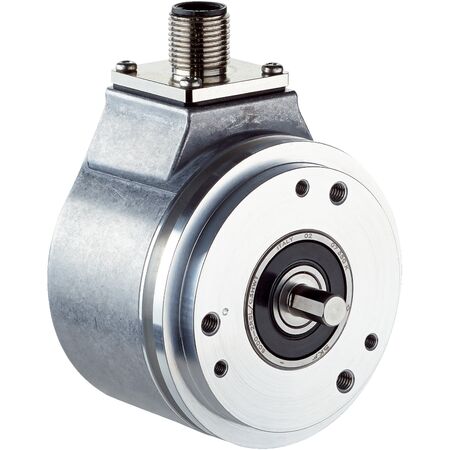

Incremental Encoder DBS60E-S1EC00020 | 6-Channel Output | IP67 Rated | by SICK
The Incremental Encoder DBS60E-S1EC00020 features a robust design with a 6-channel output and an impressive output frequency of up to 300 kHz. Ideal for industrial automation, robotics, and machine tool control, this encoder ensures precise position and speed measurement. With an IP67 rated housing and a wide operating temperature range from -20°C to +85°C, it’s built for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S1EC00020 | 6-Channel Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1074267
Alternatively Known As: Incremental rotary encoder, position encoder, shaft encoder, rotary pulse encoder
Technical Specifications
- Pulses per revolution: 20
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1.2 Ncm at +20 °C
- Operating torque: 1.1 Ncm at +20 °C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- Incremental communication interface with HTL / Push pull
- 6-channel signal output
- High output frequency up to 300 kHz
- Robust solid shaft with stainless steel material
- IP67 rated housing side and IP65 shaft side for protection
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -20°C to +85°C
- Low power consumption ≤ 1 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-S1EC00020 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
