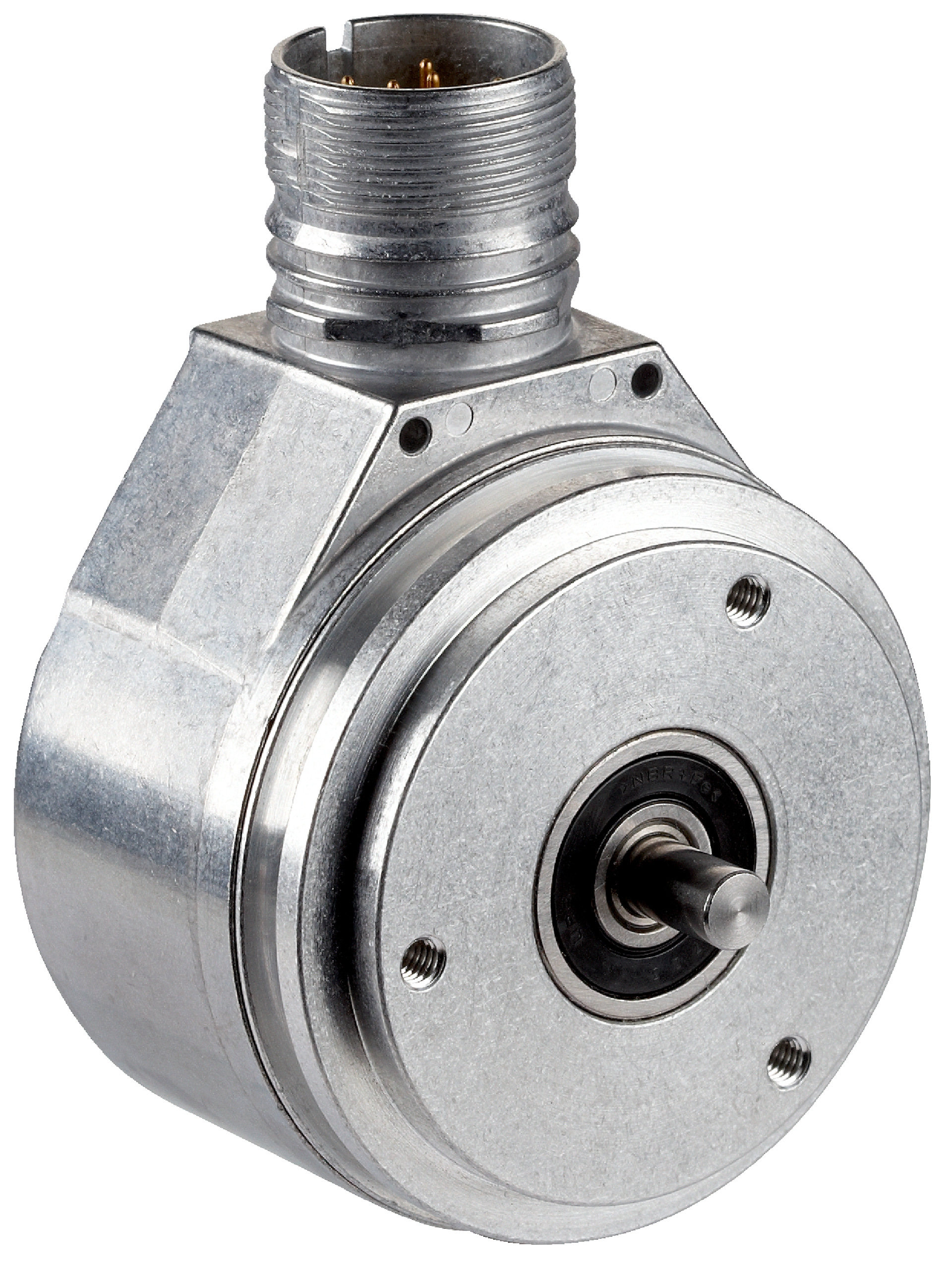

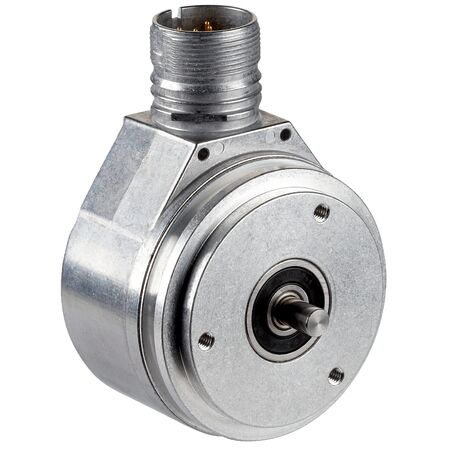

Incremental Encoder DFS60B-S1EA06000 | 6000 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60B-S1EA06000 offers high resolution with 6,000 pulses per revolution, making it ideal for industrial automation and precise motion control applications. Built for durability, it features a robust aluminum die-cast housing with an IP67 rating and operates in extreme temperatures from -40 °C to +100 °C. With low power consumption and short-circuit protection, this encoder is perfect for robotics and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S1EA06000 | 6000 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1038867
Alternatively Known As: Incremental rotary encoder, high resolution encoder, industrial position sensor, SICK encoder DFS60B
Technical Specifications
- Pulses per revolution: 6,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 80mm x 40mm
- Weight: 0.3 kg
Key Features
- High resolution with 6,000 pulses per revolution
- Solid shaft with stainless steel material and servo flange
- Robust aluminum die cast housing with IP67 rating on housing side
- Low power consumption ≤ 0.5 W without load
- Short-circuit and reverse polarity protection
- Operating temperature range from -40 °C to +100 °C
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- 6-channel incremental communication interface (HTL / Push pull)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60B-S1EA06000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
